Lexus ES: Terminals Of Ecu

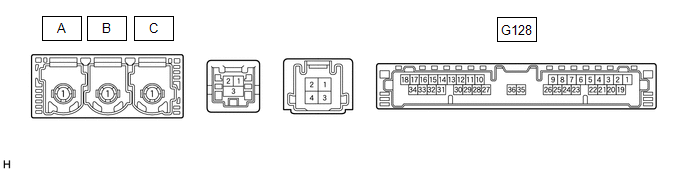

TERMINALS OF ECU
.png)
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G128-1 (+B) - G128-20 (E) | BR - W-B | Power source (+B) | Power switch off | 11 to 14 V |
| G128-3 (SIG-) - G128-20 (E) | B - W-B | Ground | Always | Below 1 V |
| G128-4 (IND1) - G128-20 (E) | LG - W-B | Manual (SOS) switch red indicator illumination signal | For 2 seconds after turning the power switch on (IG) | 1 to 8.5 V |
| Power switch off | Below 1 V | |||
| G128-5 (MCVD) - G128-20 (E) | B - W-B | Telephone microphone assembly power supply | Power switch on (ACC) | 4 to 6 V |
| Power switch off | Below 1 V | |||
| G128-6 (MCI+) - G128-20 (E) | W - W-B | Receive microphone voice signal | Voice being input to telephone microphone assembly | A waveform synchronized with microphone voice signal is input |
| G128-7 (MCI-) - G128-20 (E) | R - W-B | Receive microphone voice signal | Always | Below 1 V |
| G128-13 (GSW) - G128-20 (E) | Y - W-B | Collision detection signal | Power switch on (IG) | Pulse generation (Refer to waveform1) |
| G128-19 (IG2) - G128-20 (E) | P - W-B | Power source (IG) | Power switch on (IG) | 11 to 14 V |
| Power switch off | Below 1 V | |||
| G128-20 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| G128-21 (SIG1) - G128-3 (SIG-) | R - G | Manual (SOS) switch button condition signal | Manual (SOS) switch not pressed | 1.3 to 1.9 V |
| Manual (SOS) switch pressed | 0.5 to 0.8 V | |||
| G128-22 (IND2) - G128-20 (E) | G - W-B | Manual (SOS) switch green indicator illumination signal | For 2 seconds after turning the power switch on (IG) | 1 to 8.5 V |
| Power switch off | Below 1 V | |||
| G128-23 (SGND) - G128-20 (E) | Shielded - W-B | Shield ground | Always | Below 1 Ω |
| G128-25 (CANP) | R | CAN communication signal | - | - |
| G128-26 (CANN) | W | CAN communication signal | - | - |
CHECK DCM (TELEMATICS TRANSCEIVER)

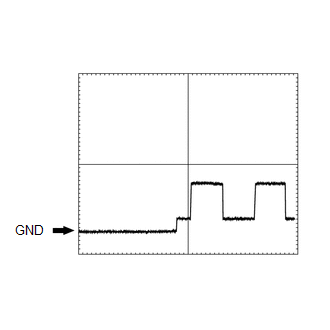

(a) Oscilloscope waveform:
.png)
(1) Waveform 1
| Item | Condition |
|---|---|
| Tester connection | G128-13 (GSW) - G128-20 (E) |
| Tool setting | 5.0 V/DIV., 20 ms/DIV. |
| Vehicle condition | Power switch on (IG) |
CHECK RADIO RECEIVER ASSEMBLY
w/o Navigation System: Click here .gif)
w/ Navigation System: Click here
