REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE

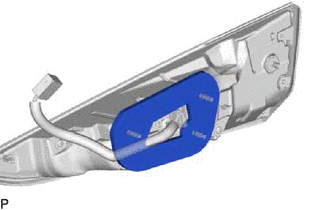

1. INSTALL REAR LIGHT PROTECTOR
| (a) Install a new rear light protector. |
|
.png)

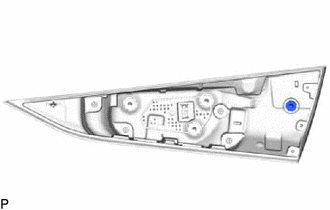

2. INSTALL REAR LIGHT GASKET
| (a) Install a new rear light gasket. |
|
.png)
