Lexus ES: Other interior features

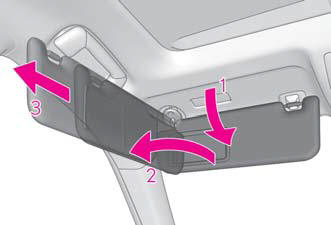

Sun visors

Lexus ES. Using the other interior features

  1. To set the visor in the forward position, flip it down.
  2. To set the visor in the side position, flip down, unhook, and swing it to the side.
  3. To use the side extender, place the visor in the side position, then slide it backward.

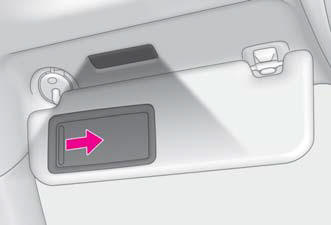

Vanity mirrors

Slide the cover to open.

The light turns on when the cover is opened.

Lexus ES. Using the other interior features

NOTICE

■To prevent 12-volt battery discharge Do not leave the lights on longer than necessary when the hybrid system is off.

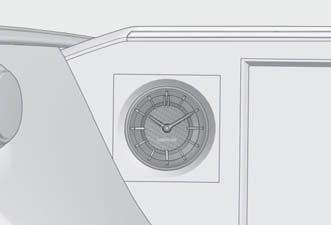

Clock

The GPS clock's time is automatically adjusted by utilizing GPS time information.

For details, refer to the "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

Lexus ES. Using the other interior features

Power outlets

Please use as a power supply for electronic goods that use less than 12 VDC/10 A (power consumption of 120 W).

Front

Open the lid.

Lexus ES. Using the other interior features

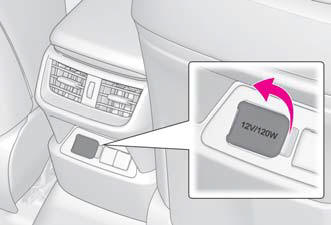

Rear

Open the lid.

Lexus ES. Using the other interior features

■The power outlet can be used when The power switch is in ACCESSORY or ON mode.

■When stopping the hybrid system Disconnect electrical devices with charging functions, such as mobile battery backs.

If such devices are left connected, the hybrid system may not stop normally.

■Using the power outlet The shape of the console box partition allows power cables to be passed through when the console box lid is partially closed.

Lexus ES. Using the other interior features

NOTICE

■When the power outlet is not in use To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short circuit.

■To prevent 12-volt battery discharge Do not use the power outlet longer than necessary when the hybrid system is off.

USB charging ports

The USB charging ports are used to supply 2.1 A of electricity at 5 V to external devices.

The USB charging ports are for charging only. They are not designed for data transfer or other purposes.

Depending on the external device, it may not charge properly. Refer to the manual included with the device before using a USB charging port.

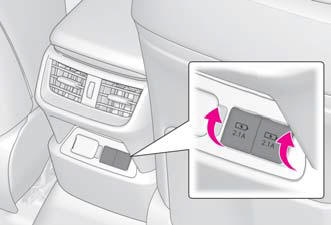

■ Using the USB charging ports

Open the lid.

Lexus ES. Using the other interior features

■The USB charging ports can be used when The power switch is in ACCESSORY or ON mode.

■Situations in which the USB charging ports may not operate correctly

■About connected external devices Depending on the connected external device, charging may occasionally be suspended and then start again. This is not a malfunction.

NOTICE

■To prevent damage to the USB charging ports

■To prevent damage to external devices

■To prevent 12-volt battery discharge Do not use the USB charging ports for a long period of time with the hybrid system stopped.

Wireless charger (if equipped)

A portable device can be charged by just placing Qi standard wireless charge compatible portable devices according to the Wireless Power Consortium, such as smart phones and mobile batteries, etc., on the charge area.

This function cannot be used with portable devices that are larger than the charging area. Also, depending on the portable device, it may not operate as normal. Please read the operation manual for portable devices to be used.

■ The "Qi" symbol The "Qi" symbol is a trademark of the Wireless Power Consortium. Lexus ES. Using the other interior features

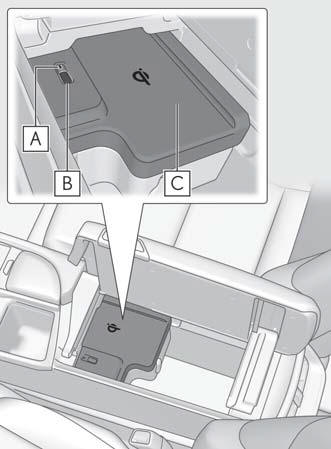

 ■ Name for all parts

Lexus ES. Using the other interior features

  1. Operation indicator light
  2. Power supply switch
  3. Charge area

■ Using the wireless charger

1. Open the console box.

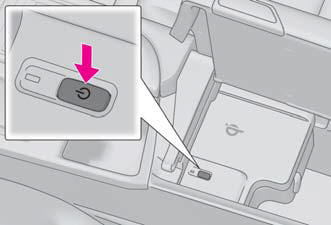

2. Press the power supply switch of the wireless charger.

Switches on and off with each press of the power supply switch.

When turned on, the operation indicator light (green) comes on.

Even with the engine off, the on/off state of the power supply switch is memorized.

Lexus ES. Using the other interior features

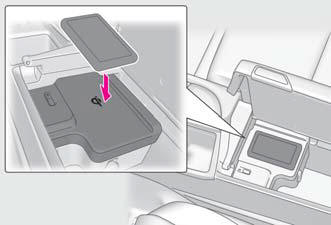

3. Place the charging side of the portable device down.

When charging, the operation indicator light (orange) comes on.

If charging is not occurring, try placing the portable device as close to the center of the charging area as possible.

When charging is complete, the operation indicator light (green) comes on.

Lexus ES. Using the other interior features

■ Recharging function

■ Lighting conditions of operation indicator light

Operation indicator light Conditions
Turning off When the Wireless charger power supply is off
Green (comes on) On Standby (charging possible state)
When charging is complete*
Orange (comes on) When placing the portable device on the charging area (detecting the portable device)
Charging

*: Depending on the portable device, there are cases where the operation indicator light will continue being lit up orange even after the charging is complete.

When an error occurs, the operation indicator light flashes an orange color. Handle the error based on the following tables.

Suspected cause Handling method
Vehicle to charger communication failure. Contact your Lexus dealer.
Suspected cause Handling method
A foreign substance is between the portable device and charge area. Remove the foreign substance from between portable device and the charge area.
The portable device is out of sync due to the device being shifted from the center of the charge area. Place the portable device near the center of the charge area.
Suspected cause Handling method
Temperature rising within the wireless charger. Stop charging at once and start charging again after for a while.

■The wireless charger can be operated when The power switch is in ACCESSORY or ON mode.

■Usable portable devices

■When covers and accessories are attached to portable devices Do not charge in situations where cover and accessories not able to handle Qi are attached to the portable device. Depending on the type of cover and accessory, it may not be possible to charge. When charging is not performed even with the portable device placed on the charge area, remove the cover and accessories.

■While charging, noise enters the AM radio Turn off the wireless charger and confirm that the noise has decreased. If the noise decreases, continuously pushing the power supply switch of the wireless charger for 2 seconds, the frequency of the charger can be changed and the noise can be reduced.

Also, on that occasion, the operation indicator light will flash orange 2 times.

■Important points of the wireless charger

■Operation sounds When the power supply is turned on, while searching for the portable device a sound will be produced, however this is not a malfunction.



WARNING

■Caution while driving When charging a portable device, for safety reasons, the driver should not operate the main the part of the portable device while driving.

■Caution regarding interference with electronic devices People with implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators, as well as any other electrical medical device, should consult their physician about the usage of the wireless charger.

The operations of the wireless charger may have an affect on medical devices.

■To prevent damage or burns Observe the following precautions.

Failure to do so may result in a possibility of equipment failure and damage, catch fire, burns due to overheat.

NOTICE

■Conditions in which the function may not operate correctly In the following conditions, it may not operate correctly

In addition, excluding the above-mentioned, when the charger does not perform normally or the operation indicator light is flashing continuously, it is considered that the wireless charger is malfunctioning.

Contact your Lexus dealer.

■To prevent failure or damage to data

NOTICE

■To prevent battery discharge When the engine is stopped, do not use the wireless charger for a long time.

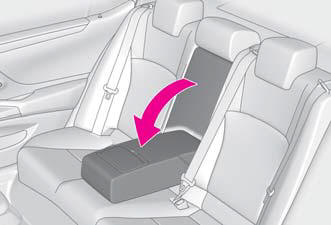

Armrest

Fold down the armrest for use.

Lexus ES. Using the other interior features

NOTICE

■To prevent damage to the armrest Do not apply too much load on the armrest.

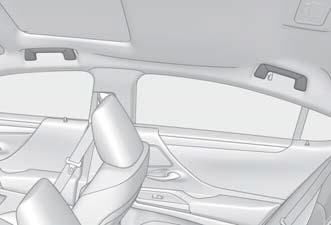

Assist grips

An assist grip installed on the ceiling can be used to support your body while sitting on the seat.

Lexus ES. Using the other interior features

WARNING

■Assist grips Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

■To prevent damage to the assist grip Do not hang any heavy object or put a heavy load on the assist grip.

Rear sunshade (if equipped)/rear door sunshades (if equipped)

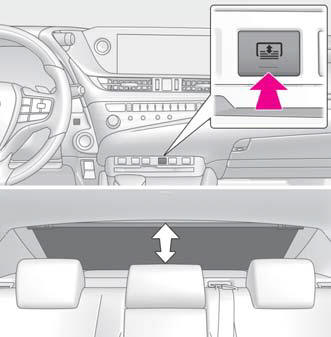

■ Rear sunshade The rear sunshade can be raised and lowered by operating the button shown below.

Press the switch. (Raise/lower)

Lexus ES. Using the other interior features

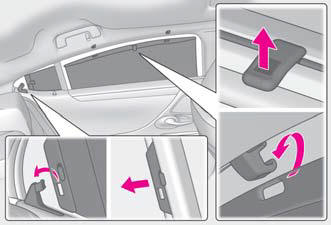

■ Rear door sunshades Pull the tab of the rear door sunshade and hook the sunshade on the anchors.

To retract the rear door sunshade, unhook the sunshade and retract it slowly.

Lexus ES. Using the other interior features

■The rear sunshade can be used when

■Reverse operation feature To ensure adequate rear visibility, the rear sunshade automatically lowers when the shift lever is shifted to R.

However, the rear sunshade is raised again if any of the following occurs:

*: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.

WARNING

■When the rear sunshade is being raised or lowered When the rear sunshade is being operated, do not place fingers or other objects in the fastener section or in the opening. They may get caught, causing injury.

NOTICE

■To prevent 12-volt battery discharge Do not operate the rear sunshade when the hybrid system is not operating.

■To ensure normal operation of the sunshades

Lexus ES. Using the other interior features

Trunk storage extension

Long objects can be loaded into the vehicle by utilizing the trunk space and rear seat area.

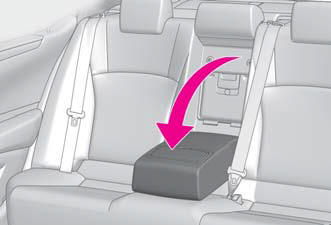

1. Fold down the armrest.

Lexus ES. Using the other interior features

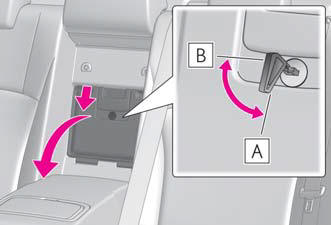

2. Fold down the handle and open the armrest door.

Lexus ES. Using the other interior features

The armrest door can be locked and unlocked using the mechanical key.

  1. Unlock
  2. Lock

WARNING

■When not in use Ensure that the armrest door is closed. In the event of sudden braking, items stored in the trunk may be thrown forward into the cabin, resulting in injury.

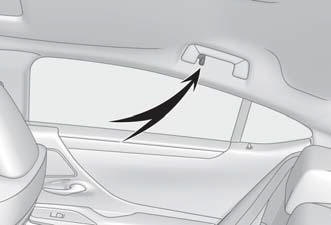

Coat hooks

The coat hooks are provided with the rear assist grips.

Lexus ES. Using the other interior features

WARNING

■Items that should not be hanged Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
