1. INSTALL NO. 1 SWITCH WIRE
HINT:
Perform this procedure only when replacement of the No. 1 switch wire is necessary.

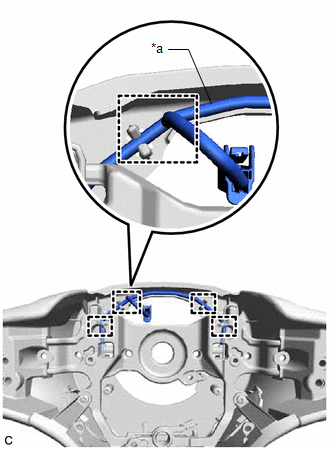

| (a) Engage the 4 guides to install the No. 1 switch wire to the steering wheel assembly. NOTICE: Make sure that the junction of the No. 1 switch wire is the right of the guide as shown in the illustration. |
|
2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)
(a) Connect the 2 shift paddle switch (transmission shift switch assembly) connectors to install the 2 shift paddle switches (transmission shift switch assemblies) to the No. 1 switch wire.
(b) Engage the 2 clamps.
(c) Engage the 4 claws to install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly.
(d) Install 2 new screws.
Torque:
1.7 N·m {17 kgf·cm, 15 in·lbf}
3. INSTALL STEERING PAD SWITCH ASSEMBLY
Click here .gif)
4. INSTALL STEERING WHEEL ASSEMBLY
Click here
