Lexus ES (XZ10) Service Manual / Steering / Steering Column / Steering Column Assembly (for Power Tilt And Power Telescopic Steering Column) / Inspection

INSPECTION

PROCEDURE

1. INSPECT STEERING COLUMN ASSEMBLY

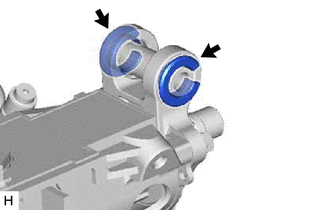

(a) Check that the 2 bushings are securely installed to the steering column assembly.

HINT:

If the bushings are deformed, missing or damaged, replace the steering column assembly with a new one.
