Lexus ES: Reassembly

Lexus ES (XZ10) Service Manual / Steering / Steering Column / Steering Column Assembly (for Power Tilt And Power Telescopic Steering Column) / Reassembly

REASSEMBLY

PROCEDURE

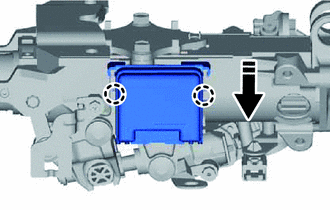

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

Install in this direction

(a) Engage the 2 claws to install the multiplex tilt and telescopic ECU.

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

NOTICE:

After replacing the steering lock actuator assembly, perform registration.

(a) Secure the steering column assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

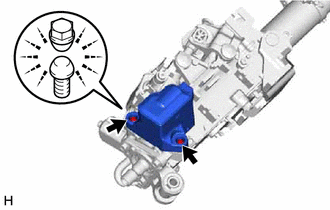

(b) Temporarily install the steering lock actuator assembly with 2 new steering lock set bolts.

(c) Tighten the 2 steering lock set bolts until the bolt head breaks off.
