Lexus ES: Inspection
INSPECTION
PROCEDURE
1. INSPECT HV SUPPLY STACK SUB-ASSEMBLY
CAUTION:
Be sure to wear insulated gloves and protective goggles.
(a) Remove the HV supply stack sub-assembly.
Click here .gif)
(b) Inspect the HV supply stack sub-assembly.

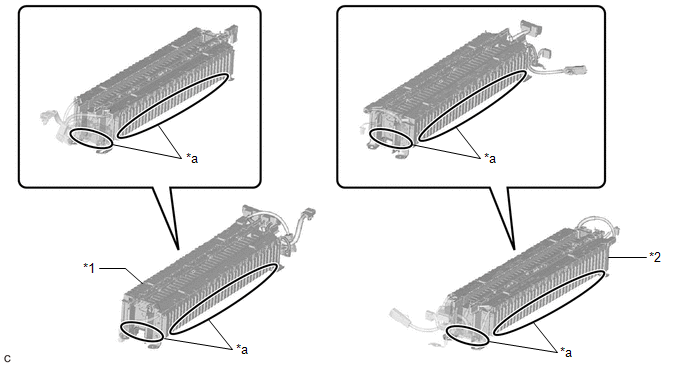

(1) Check that no electrolyte is leaking from the No. 1 HV supply stack sub-assembly or No. 2 HV supply stack sub-assembly.
| *1 | No. 1 HV Supply Stack Sub-assembly | *2 | No. 2 HV Supply Stack Sub-assembly |
| *a | Check Part | - | - |
OK:
There is no electrolyte leaking from the HV supply stack sub-assembly.
HINT:
If the result is not as specified, replace the No. 1 HV supply stack sub-assembly or No. 2 HV supply stack sub-assembly.
(c) Install the HV supply stack sub-assembly.
Click here
