DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

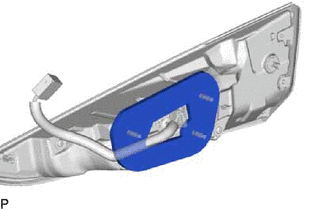

1. REMOVE REAR LIGHT GASKET

(a) Remove the rear light gasket.

NOTICE:

  • Be sure to remove all traces of the old rear light gasket from the vehicle body.
  • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.

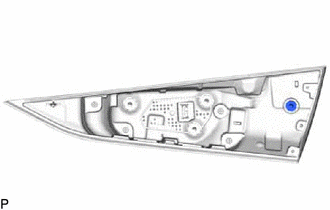

2. REMOVE REAR LIGHT PROTECTOR

(a) Remove the rear light protector.

NOTICE:

  • Be sure to remove all the traces of the old rear light protector from the vehicle body.
  • Do not reuse the removed rear light protector. Be sure to install new rear light protector to prevent water ingress.
