Lexus ES: Reassembly

Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Rear Light Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

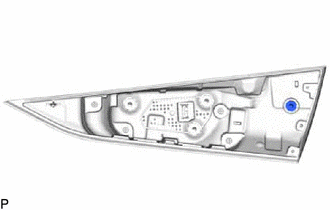

1. INSTALL REAR LIGHT PROTECTOR

(a) Install a new rear light protector.

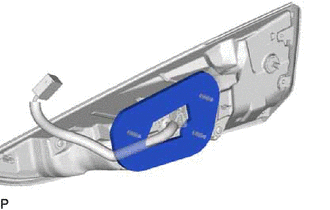

2. INSTALL REAR LIGHT GASKET

(a) Install a new rear light gasket.
