Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

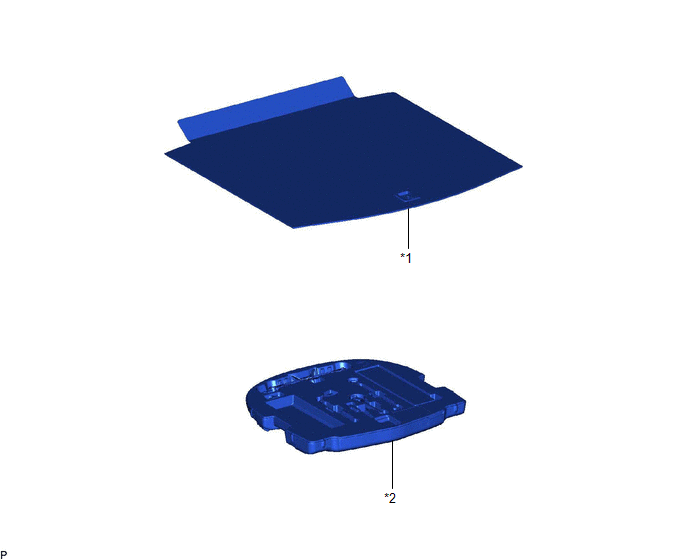

| *1 | LUGGAGE COMPARTMENT FLOOR MAT | *2 | SPARE WHEEL COVER TRAY |
ILLUSTRATION
.png)

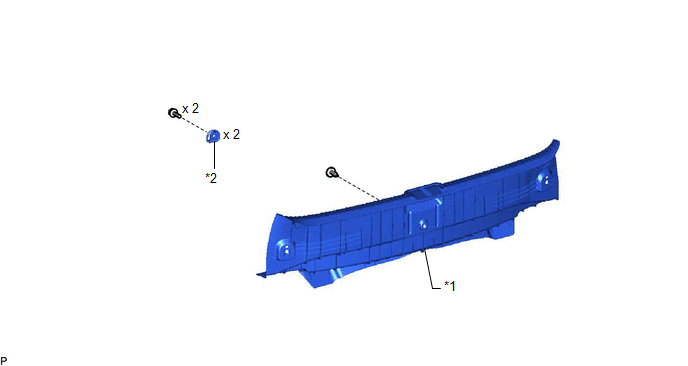

| *1 | REAR FLOOR FINISH PLATE | *2 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION

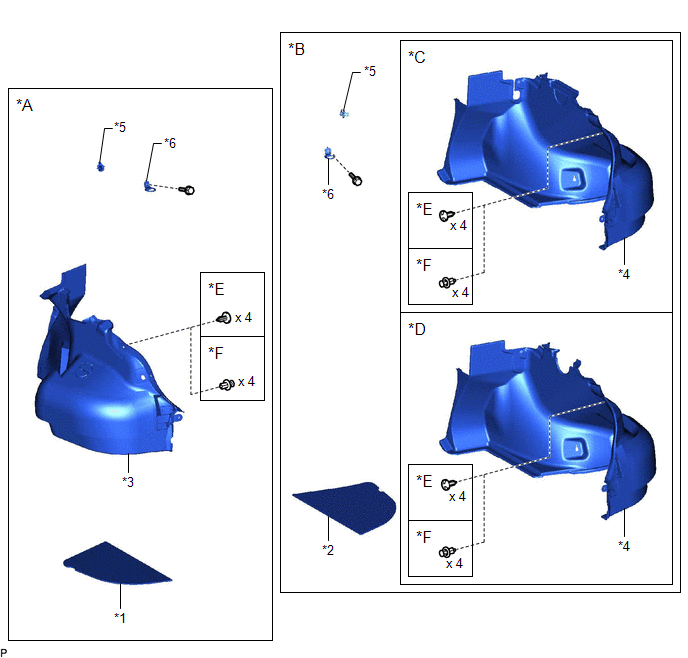

| *A | for LH Side | *B | for RH Side |
| *C | w/o Power Trunk Lid System | *D | w/ Power Trunk Lid System |
| *E | for Type A | *F | for Type B |
| *1 | LUGGAGE COMPARTMENT TRIM COVER LH | *2 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *3 | LUGGAGE COMPARTMENT TRIM INNER COVER LH | *4 | LUGGAGE COMPARTMENT TRIM INNER COVER RH |
| *5 | ROPE HOOK | *6 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION

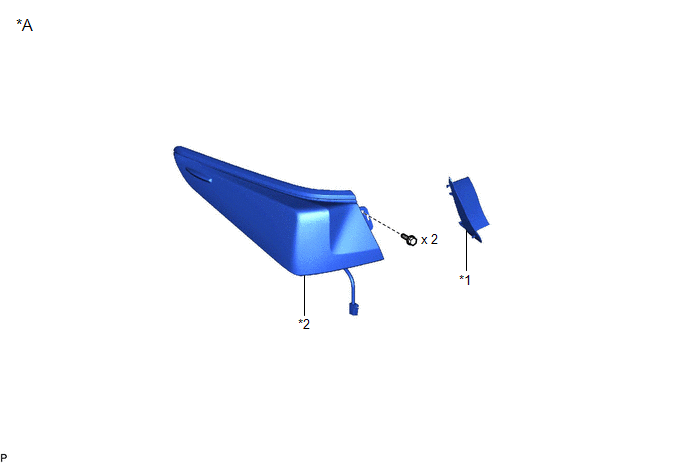

| *A | for TMC Made | - | - |
| *1 | REAR COMBINATION LIGHT COVER | *2 | REAR COMBINATION LIGHT LENS AND BODY |
ILLUSTRATION

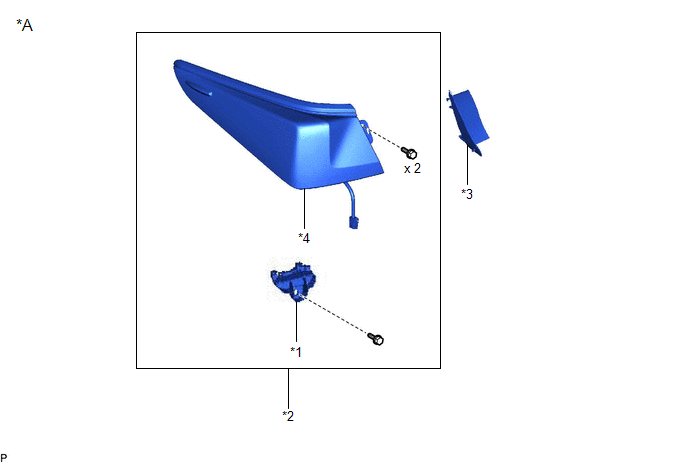

| *A | for TMMK Made | - | - |
| *1 | REAR BUMPER UPPER RETAINER | *2 | REAR COMBINATION LIGHT ASSEMBLY |
| *3 | REAR COMBINATION LIGHT COVER | *4 | REAR COMBINATION LIGHT LENS AND BODY |
