Lexus ES: CD/DVD Sound Skips

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

    Click here

  • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly may not operate normally.

PROCEDURE

1.

CHECK DISC

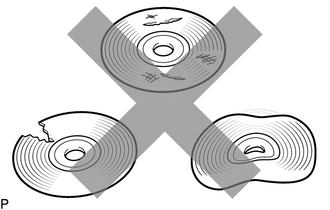

(a) Check that the disc is not deformed or cracked.

OK:

No deformation or cracks on the disc

NG

END (DISC IS FAULTY)

OK

2.

CHECK DISC

(a) Check the disc.

OK:

The disc is clean.

NOTICE:

Do not use a conventional record cleaner or anti-static preservative.

HINT:

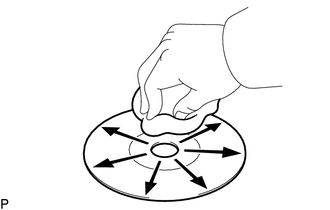

If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NG

CLEAN DISC

OK

3.

REPLACE DISC AND RECHECK

(a) Replace the disc with a new or known good one and check that the malfunction disappears.

OK:

Malfunction disappears.

OK

END (DISC WAS FAULTY)

NG

4.

CHECK RADIO RECEIVER ASSEMBLY

(a) Check the radio receiver assembly installation condition.

(1) Check that the radio receiver assembly is properly installed.

OK:

The radio receiver assembly is properly installed.

OK

REPLACE RADIO RECEIVER ASSEMBLY

NG

REINSTALL RADIO RECEIVER ASSEMBLY
