Lexus ES (XZ10) Service Manual / Vehicle Interior / Exterior Panels / Trim / Name Plate / Components
COMPONENTS

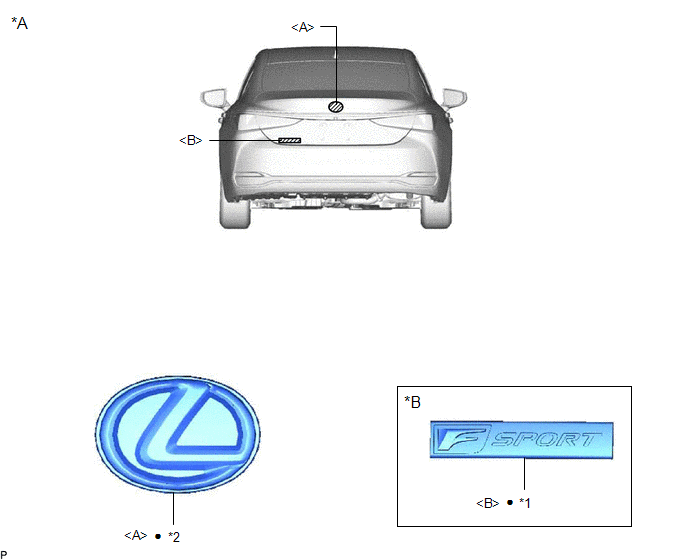

ILLUSTRATION
| *A | for Gasoline Model | *B | for Mesh Type Radiator Grille |
| *1 | NO. 3 LUGGAGE COMPARTMENT DOOR PLATE | *2 | SYMBOL EMBLEM |
| ● | Non-reusable part | - | - |

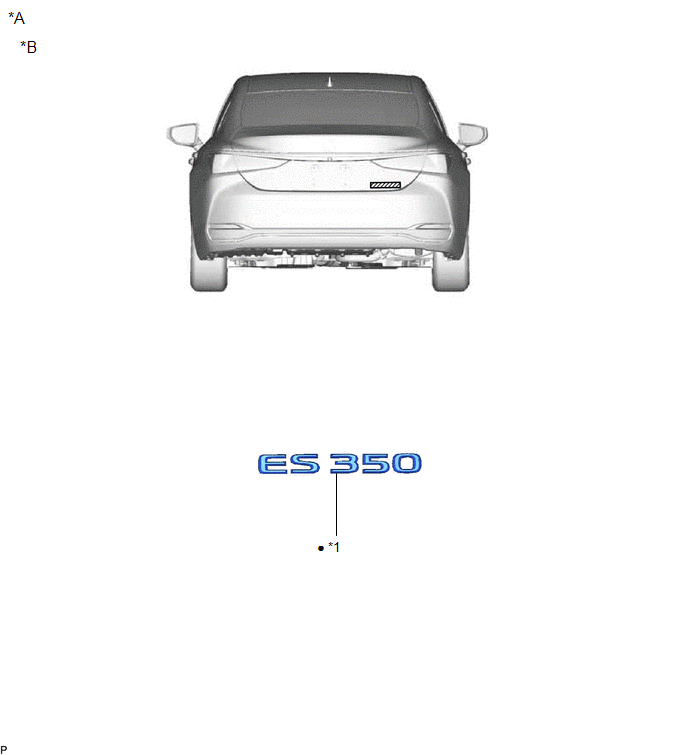

ILLUSTRATION
| *A | for Gasoline Model | *B | Except AWD |
| *1 | NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE | - | - |
| ● | Non-reusable part | - | - |

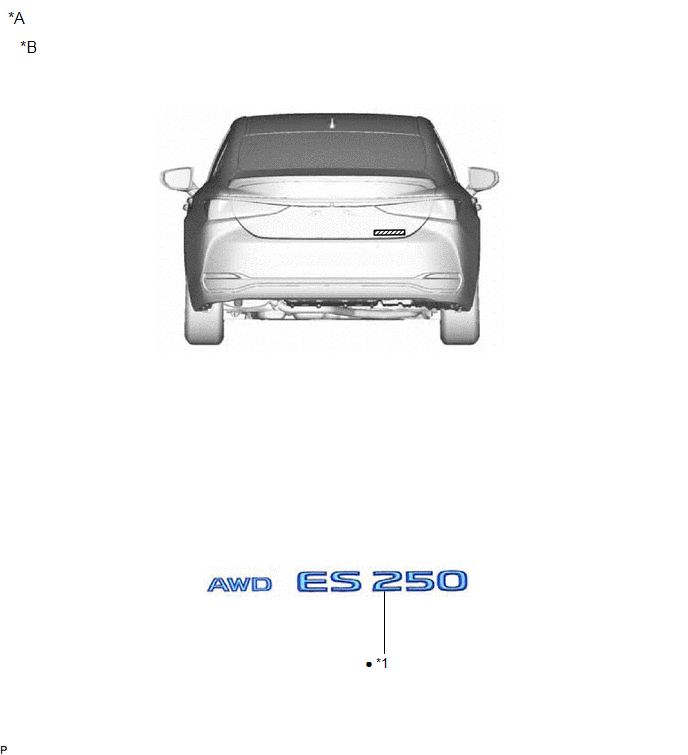

ILLUSTRATION
| *A | for Gasoline Model | *B | for AWD |
| *1 | NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE | - | - |
| ● | Non-reusable part | - | - |

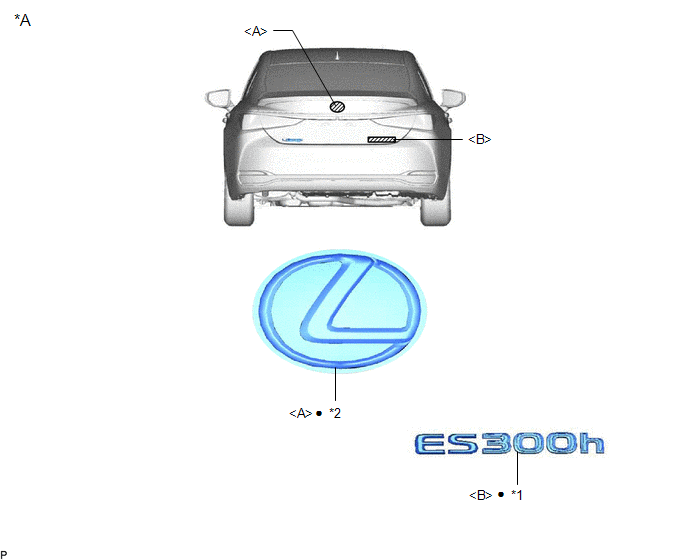

ILLUSTRATION
| *A | for HV Model | - | - |
| *1 | NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE | *2 | SYMBOL EMBLEM |
| ● | Non-reusable part | - | - |

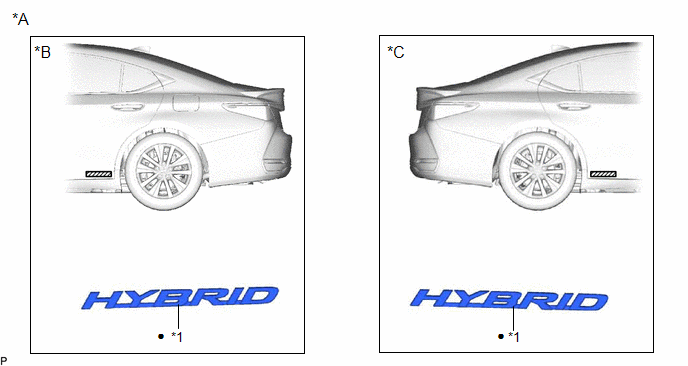

ILLUSTRATION
| *A | for HV Model | *B | for LH Side |
| *C | for RH Side | - | - |
| *1 | BODY SIDE NAME PLATE | - | - |
| ● | Non-reusable part | - | - |

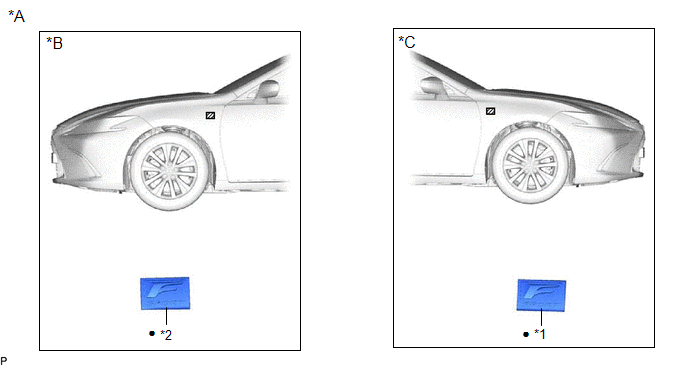

ILLUSTRATION
| *A | for Mesh Type Radiator Grille | *B | for LH Side |
| *C | for RH Side | - | - |
| *1 | NO. 1 FRONT FENDER NAME PLATE | *2 | NO. 2 FRONT FENDER NAME PLATE |
| ● | Non-reusable part | - | - |
