Lexus ES: Quarter Garnish

Lexus ES (XZ10) Service Manual / Vehicle Interior / Exterior Panels / Trim / Quarter Garnish

Components

COMPONENTS

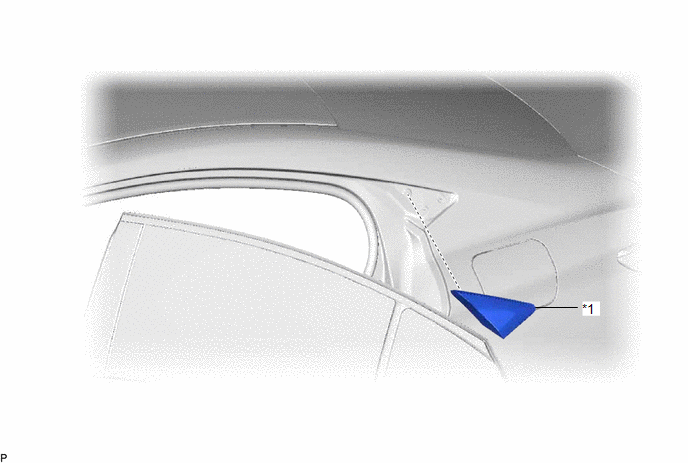

ILLUSTRATION

*1

REAR ROOF DRIP SIDE FINISH MOULDING

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING

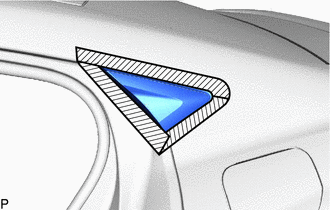

(a) Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.

Protective Tape

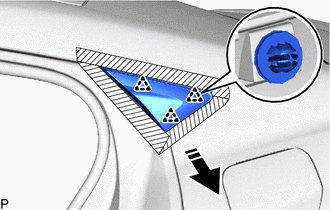

(b) Disengage the 3 clips to remove the rear roof drip side finish moulding as shown in the illustration.

Remove in this Direction

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR ROOF DRIP SIDE FINISH MOULDING

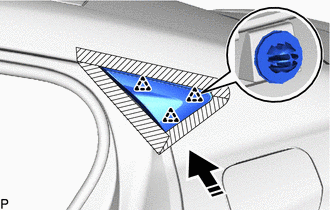

(a) Engage the 3 clips to install the rear roof drip side finish moulding as shown in the illustration.

Install in this Direction
