Lexus ES: Components

COMPONENTS

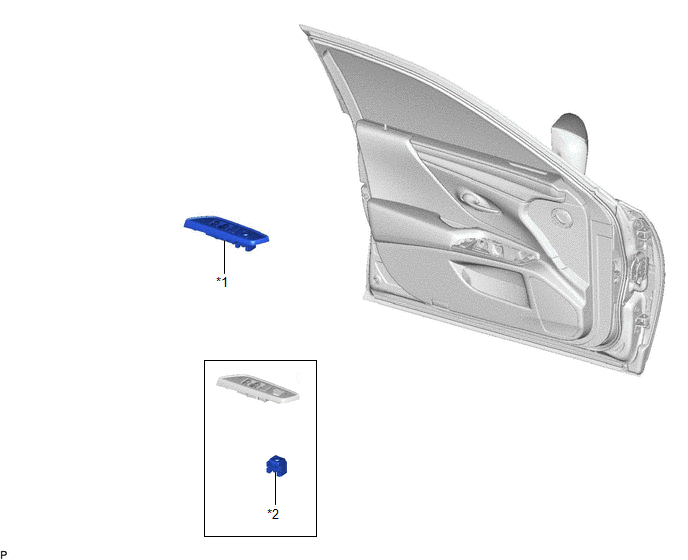

ILLUSTRATION

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*2

OUTER MIRROR SWITCH ASSEMBLY

READ NEXT:

 Removal

REMOVAL PROCEDURE 1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL Click here 2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (a) Using a screwdriver, disengag

 Inspection

INSPECTION PROCEDURE 1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Memory) (a) Check the mirror select switch and mirror surface adjust switch. (1) Select the mirror select switch to the L position.

 Installation

INSTALLATION PROCEDURE 1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (a) Engage the 4 claws to install the outer mirror switch assembly. 2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WI
