Lexus ES (XZ10) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Mirror Switch / Removal

REMOVAL

PROCEDURE

1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE OUTER MIRROR SWITCH ASSEMBLY

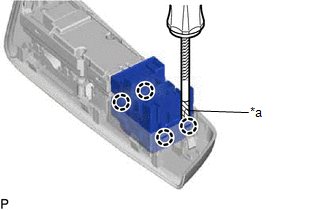

(a) Using a screwdriver, disengage the 4 claws and remove the outer mirror switch assembly.

HINT:

Tape the screwdriver tip before use.

*a

Protective Tape
