Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (cooling) / Thermostat / Components
COMPONENTS

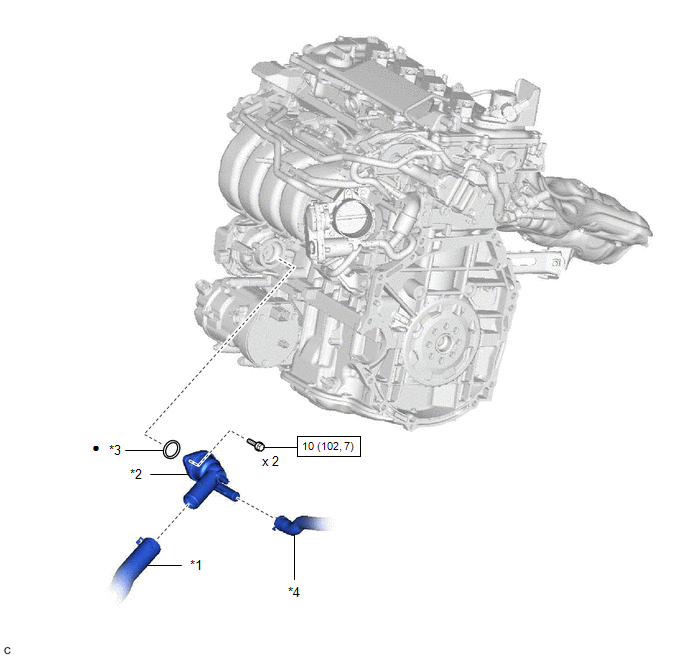

ILLUSTRATION
| *1 | NO. 2 RADIATOR HOSE | *2 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *3 | GASKET | *4 | NO. 7 WATER BY-PASS HOSE |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
