Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (emission Control) / Fuel Tank Pressure Sensor / Components

COMPONENTS

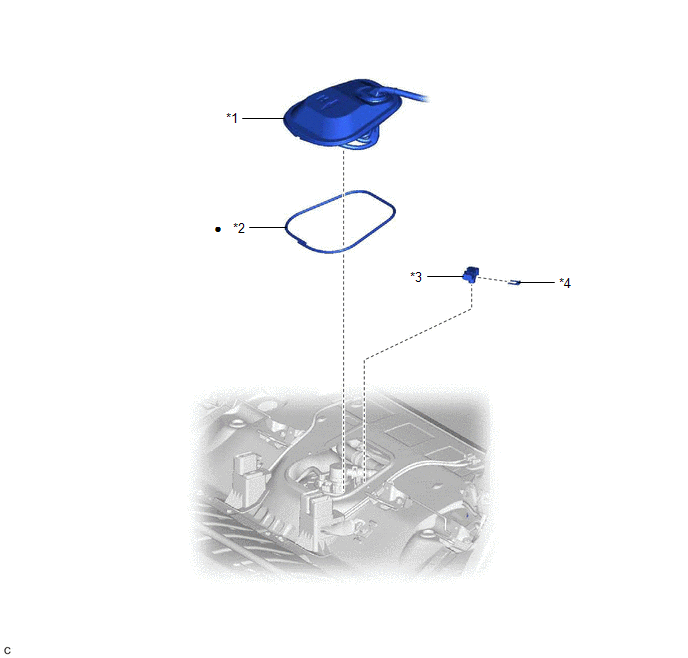

ILLUSTRATION

*1

REAR FLOOR SERVICE HOLE COVER

*2

BUTYL TAPE

*3

FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)

*4

TUBE JOINT CLIP

●

Non-reusable part

-

-
