REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of ignition coil assembly
  • Replacement of spark plug

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here

2. REMOVE IGNITION COIL ASSEMBLY

Click here

3. REMOVE SPARK PLUG

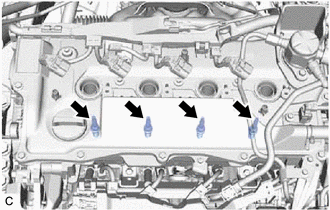

(a) Remove the 4 spark plugs from the cylinder head sub-assembly.

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.
