Lexus ES: Reassembly

Lexus ES (XZ10) Service Manual / Steering / Steering Column / Steering Column Assembly (for Manual Tilt And Manual Telescopic Steering Column) / Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

NOTICE:

After replacing the steering lock actuator assembly, perform registration.

(a) Secure the steering column assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

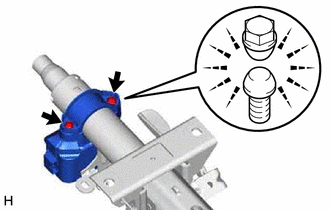

(b) Temporarily install the steering lock actuator assembly and upper steering column clamp with 2 new steering lock set bolts.

(c) Tighten the 2 steering lock set bolts until the bolt head breaks off.
