Lexus ES: Lexus Climate Concierge

Lexus Climate Concierge

The seat heaters (if equipped), seat ventilators (if equipped) and heated steering wheel (if equipped) are each automatically controlled according to the set temperature of the air conditioning system, the outside and cabin temperature, etc.

Lexus Climate Concierge allows a comfortable condition to be maintained without adjusting each system.

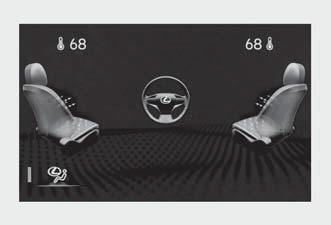

Press the "MENU" button on the Remote Touch and select "Climate" to display the air conditioning control screen. Then, select on the sub menu to display the Lexus Climate Concierge control screen.

Turning on Lexus Climate Concierge

Select Lexus ES. Lexus Climate Concierge

The indicator on the Lexus Climate Concierge control screen illuminates, and the automatic air conditioning system, seat heaters and ventilators, and heated steering wheel operate in automatic mode.

If any of the system is operated manually, the indicator turns off. However, all other functions continue to operate in automatic mode.

Lexus ES. Lexus Climate Concierge

■When using the Lexus Climate Concierge Lexus Climate Concierge can be operated on the sub function menu or option control screen.

Operation of each system

■ Automatic air conditioning system The temperature can be adjusted individually for the driver seat and passenger seat.

■ Seat heaters and ventilators (if equipped) Heating or ventilation is automatically selected according to the set temperature of the air conditioning system, the outside temperature, etc. Also, heating and ventilation may turn off.

The seat heater and ventilator of the front passenger seat operate in automatic mode if a passenger is detected.

■ Heated steering wheel (if equipped) Heated steering wheel operates automatically according to the set temperature of the air conditioning system, the outside temperature, etc.

■Seat heater/ventilator operation When automatic mode is selected using the seat heater/ventilator switch, passenger detection is not performed.
