Lexus ES: Heated steering wheel/seat heaters/ seat ventilators

Lexus ES (XZ10) Owner's Manual / Interior features / Using the air conditioning system / Heated steering wheel/seat heaters/ seat ventilators

Press the "MENU" button on the Remote Touch and select "Climate" to display the air conditioning control screen. Then, select Lexus ES. Using the air conditioning system on the sub menu to display the heated steering wheel/seat heaters/ seat ventilators control screen.

WARNING

■To prevent minor burn injuries Care should be taken if anyone in the following categories comes in contact with the steering wheel or seats when the heater is on:

NOTICE

■To prevent damage to the seat heaters and seat ventilators Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.

■To prevent 12-volt battery discharge Do not use the functions when the hybrid system is off.

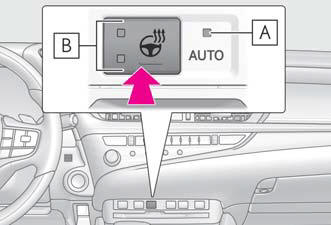

Heated steering wheel

Each time the switch is pressed, the operation condition changes as follows.

AUTO (lit) Hi (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B illuminates during operation.

Lexus ES. Using the air conditioning system

■Operation condition The power switch is in ON mode.

■When AUTO mode is selected The heated steering wheel function may turn off according to the air conditioning set temperature, outside temperature, etc.

■Stored settings When the power switch is turned to ON mode, the stored settings are recalled.

Seat heaters and ventilators

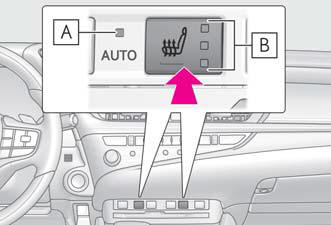

■ Seat heaters Each time the switch is pressed, the operation condition changes as follows.

AUTO (lit) Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B illuminates during operation.

Lexus ES. Using the air conditioning system

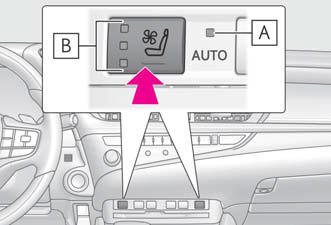

■ Seat ventilators Each time the switch is pressed, the operation condition changes as follows.

AUTO (lit) Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The AUTO indicator A and/or level indicator B illuminates during operation.

Lexus ES. Using the air conditioning system

■Operation condition The power switch is in ON mode.

■Air conditioning system-linked control mode When the seat ventilator fan speed level is Hi (when AUTO is selected), the seat ventilator fan speed may become higher according to the fan speed of the air conditioning system.

■When AUTO mode is selected The following functions may turn off according to the air conditioning set temperature, outside temperature, etc.

■Stored settings When the power switch is turned to ON mode, the following stored settings are recalled.

WARNING

■To prevent overheating and minor burn injuries Observe the following precautions when using the seat heaters.

Control screen

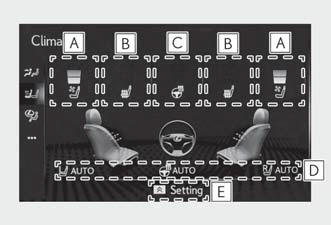

■ Main display Using the touchpad of the Remote Touch, select the button on the screen.

A to C can be adjusted by performing the following operations.

Flick operation: Move the pointer to the desired item and flick the touchpad up or down.

The item can be adjusted by one level.

Trace operation: After selecting the desired item, trace the pad surface.

The item can be adjusted by the amount that you trace.

Trace operation cannot be used while driving.

Lexus ES. Using the air conditioning system

  1. Adjust the seat ventilator fan speed level
    The seat ventilator can be adjusted in 3 levels.
    When the seat ventilator is operated, the fan speed level is displayed on the screen.
  2. Adjust the seat heater temperature level
    The seat heater can be adjusted in 3 levels.
    When the seat heater is operated, the temperature level is displayed on the screen.
  3. Adjust the heated steering wheel temperature level
    The heated steering wheel can be adjusted in 2 levels.
    When the heated steering wheel is operated, the temperature level is displayed on the screen.
  4. Automatic mode on/off indicators
    When the automatic mode is on, the indicator illuminates on the screen.
  5. Sub function menu
    When the sub function button on the Remote Touch is pressed, the following functions can be set to automatic mode.

Left-hand side seat heater/seat ventilator

Heated steering wheel

Right-hand side seat heater/seat ventilator

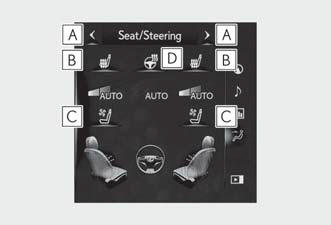

■ Side display (12.3-inch display model)

Lexus ES. Using the air conditioning system

  1. Display the air conditioning control screen
  2. Adjust the seat heater temperature level
    Each time the switch is selected, the temperature level and level indicator (orange) change as follows: AUTO Hi Mid Lo Off
  3. Adjust the seat ventilator fan speed level
    Each time the switch is selected, the fan speed level and level indicator (blue) change as follows: AUTO Hi Mid Lo Off
  4. Adjust the heated steering wheel temperature level
    Each time the switch is selected, the temperature level and level indicator change as follows: AUTO Hi Lo Off

■Customization Steering wheel heating preference in automatic mode and the automatic mode settings for the seat heaters and ventilators can be changed.
