INSTALLATION
CAUTION / NOTICE / HINT
PROCEDURE
1. INSTALL CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

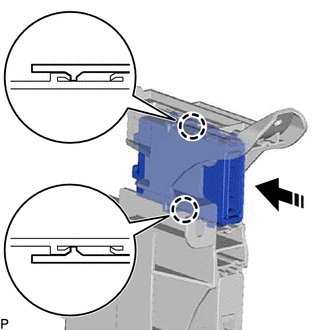

(a) Engage the 2 claws to install the central gateway ECU (network gateway ECU) as shown in the illustration.
.png) | Install in this Direction |
NOTICE:
Make sure that the central gateway ECU (network gateway ECU) is securely installed.
2. INSTALL ECU INTEGRATION BOX RH
(a) Install the ECU integration box RH with the bolt and nut.
(b) Engage the 2 clamps.
(c) Connect each connector.
3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
Click here .gif)
4. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Click here
