Lexus ES: Components
Lexus ES (XZ10) Service Manual / Power Source & Network / Networking / Network Gateway Ecu / Components
COMPONENTS

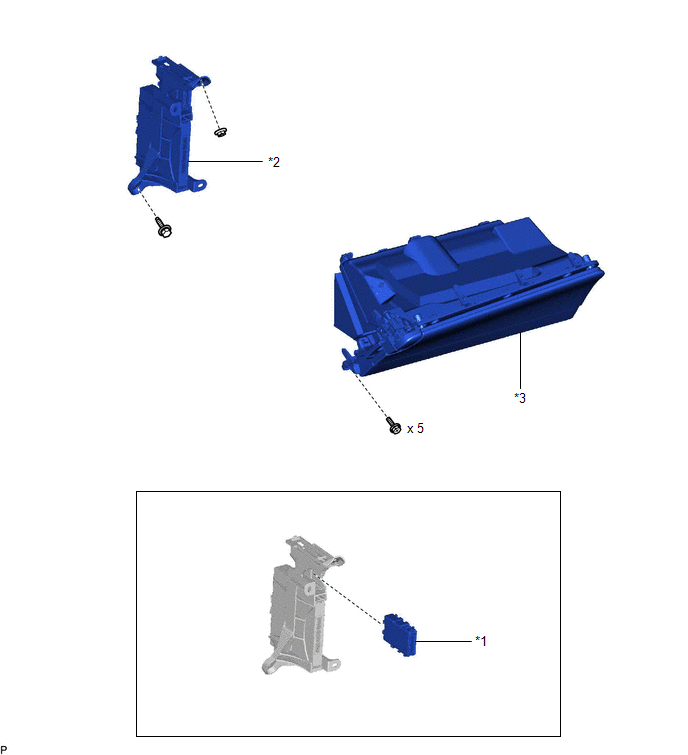

ILLUSTRATION
| *1 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *2 | ECU INTEGRATION BOX RH |
| *3 | GLOVE COMPARTMENT DOOR ASSEMBLY | - | - |
