INSTALLATION
PROCEDURE
1. INSTALL HYBRID BATTERY TERMINAL BLOCK
CAUTION:
Be sure to wear insulated gloves and protective goggles.
(a) Connect the 2 hybrid battery terminal block connectors.
NOTICE:
Make sure that the connectors are connected securely.

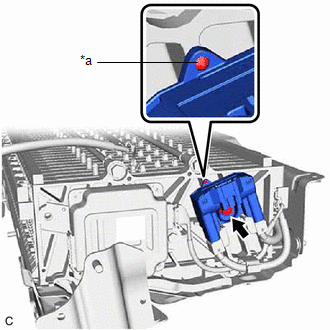

| (b) Install the hybrid battery terminal block to the HV battery with the bolt. Torque: 7.5 N·m {76 kgf·cm, 66 in·lbf} NOTICE: Make sure to align the hole of the hybrid battery terminal block with the pin. |
|
2. INSTALL NO. 1 HV BATTERY SHIELD PANEL
Click here .gif)
3. INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY
Click here
4. INSTALL HV BATTERY
Click here
