Lexus ES: Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT OIL PUMP ASSEMBLY

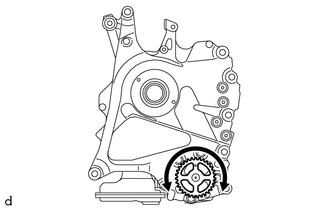

(a) Install the oil pump drive shaft sub-assembly to the front oil pump assembly.

NOTICE:

  • To avoid damaging the bush of the front oil pump assembly, install the oil pump drive shaft sub-assembly perpendicularly relative to the front oil pump assembly.
  • Align the cutout of the oil pump drive shaft sub-assembly and the cutout of the front oil pump drive gear, and install the parts.

(b) Make sure that the oil pump drive shaft sub-assembly rotates smoothly.

If the oil pump drive shaft sub-assembly does not rotate smoothly, inspect the front oil pump drive gear, front oil pump driven gear and front oil pump body.

(c) Remove the oil pump drive shaft sub-assembly from the front oil pump assembly.

NOTICE:

To avoid damaging the bush of the front oil pump assembly, remove the oil pump drive shaft sub-assembly perpendicularly relative to the front oil pump assembly.

2. INSPECT STATOR SHAFT ASSEMBLY

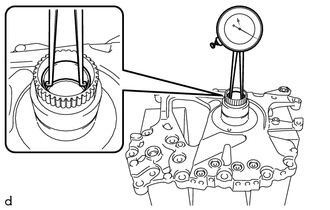

(a) Using a caliper gauge, measure the inside diameter of the bushing of the stator shaft assembly (for torque converter assembly).

Standard Inside Diameter:

22.201 to 22.227 mm (0.874 to 0.875 in.)

Maximum Inside Diameter:

22.227 mm (0.875 in.)

If the inside diameter is more than the maximum, replace the stator shaft assembly.

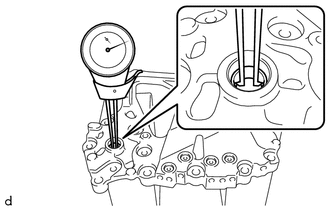

(b) Using a caliper gauge, measure the inside diameter of the bushing of the stator shaft assembly (for oil pump drive shaft sub-assembly).

Standard Inside Diameter:

12.020 to 12.035 mm (0.473 to 0.474 in.)

Maximum Inside Diameter:

12.035 mm (0.474 in.)

If the inside diameter is more than the maximum, replace the stator shaft assembly.

3. INSPECT FRONT OIL PUMP COVER SUB-ASSEMBLY

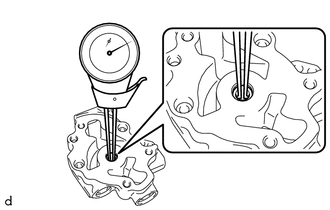

(a) Using a caliper gauge, measure the inside diameter of the bushing of the front oil pump cover sub-assembly.

Standard Inside Diameter:

8.02 to 8.035 mm (0.31575 to 0.31634 in.)

Maximum Inside Diameter:

8.035 mm (0.31634 in.)

If the inside diameter is more than the maximum, replace the front oil pump cover sub-assembly.

4. INSPECT FRONT OIL PUMP BODY AND GEAR SUB-ASSEMBLY

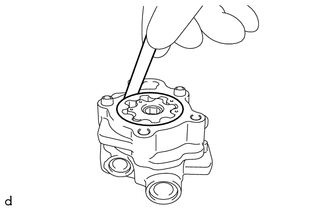

(a) Using a feeler gauge, measure the body clearance between the front oil pump driven gear and front oil pump body.

Standard Body Clearance:

0.135 to 0.175 mm (0.00531 to 0.00689 in.)

Maximum Body Clearance:

0.175 mm (0.00689 in.)

If the body clearance is more than the maximum, replace the front oil pump body and front oil pump driven gear.

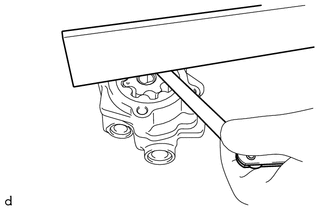

(b) Using a straightedge and feeler gauge, measure the side clearance of both gears.

Standard Side Clearance:

0.015 to 0.034 mm (0.000591 to 0.00134 in.)

Maximum Side Clearance:

0.034 mm (0.00134 in.)

If the side clearance is more than the maximum, replace the front oil pump body, front oil pump drive gear, front oil pump driven gear and stator shaft assembly.
