Lexus ES: Indicator (Green) Circuit Short to Ground (B157111,B157113)

DESCRIPTION

This DTC is set when the DCM (telematics transceiver) detects an open or short in the manual (SOS) switch green indicator circuit of the manual (SOS) switch. The manual (SOS) switch green indicator illuminates after the power switch is turned on (IG).

If the safety connect system is not active, the manual (SOS) switch green indicator will turn off.

If the safety connect system is active, the manual (SOS) switch green indicator will blink while communicating with the call center.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B157111

Indicator (Green) Circuit Short to Ground

Manual (SOS) switch green indicator impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the power switch is on (IG)

  • DCM (telematics transceiver)
  • Map light sub-assembly (manual (SOS) switch)
  • Harness or connector

B157113

Indicator (Green) Circuit Open

Manual (SOS) switch green indicator impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the power switch is on (IG)

  • DCM (telematics transceiver)
  • Map light sub-assembly (manual (SOS) switch)
  • Harness or connector

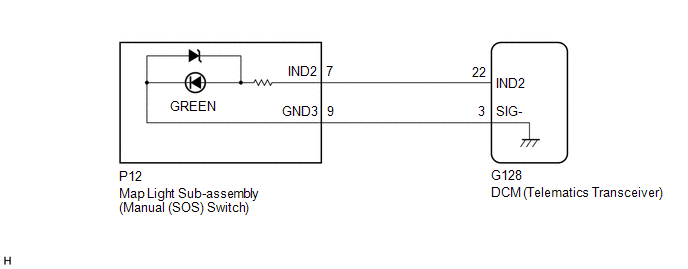

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Safety Connect System.

Click here

PROCEDURE

1.

CHECK DTC

(a) Turn the power switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the power switch on (IG) and wait for 10 seconds or more.

(d) Turn the Techstream on.

(e) Clear the DTCs.

Body Electrical > Telematics > Clear DTCs

(f) Check for DTCs and check that no DTCs are output.

Body Electrical > Telematics > Trouble Codes

OK:

No DTCs are output.

OK

USE SIMULATION METHOD TO CHECK

NG

2.

INSPECT MAP LIGHT SUB-ASSEMBLY (MANUAL (SOS) SWITCH) (GREEN INDICATOR)

(a) Remove the map light sub-assembly (manual (SOS) switch).

Click here

*a

Component without harness connected

(Map light sub-assembly (Manual (SOS) Switch))

(b) Connect 2 dry-cell batteries (1.5 V each) in series.

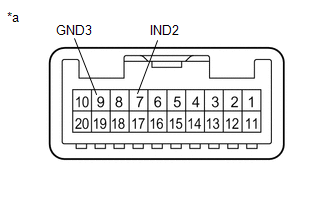

(c) Connect a positive (+) lead from batteries to terminal 7 (IND2) and a negative (-) lead to terminal 9 (GND3) of the map light sub-assembly (manual (SOS) switch) connector.

(d) Check if the manual (SOS) switch green indicator comes on.

OK:

Manual (SOS) switch green indicator illuminates.

NG

REPLACE MAP LIGHT SUB-ASSEMBLY (MANUAL (SOS) SWITCH)

OK

3.

CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - MAP LIGHT SUB-ASSEMBLY (MANUAL (SOS) SWITCH))

(a) Disconnect the G128 DCM (telematics transceiver) connector.

(b) Disconnect the P12 map light sub-assembly (manual (SOS) switch) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G128-22 (IND2) - P12-7 (IND2)

Always

Below 1 Ω

G128-22 (IND2) or P12-7 (IND2) - Body ground

Always

10 kΩ or higher

G128-3 (SIG-) - P12-9 (GND3)

Always

Below 1 Ω

G128-3 (SIG-) or P12-9 (GND3) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (telematics transceiver) with a new one.

Click here

NOTICE:

  • The power switch must be off.
  • Do not exchange the DCM (telematics transceiver) with one from another vehicle.
NEXT

PERFORM DCM ACTIVATION
