Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Height Control Sensor / Components

COMPONENTS

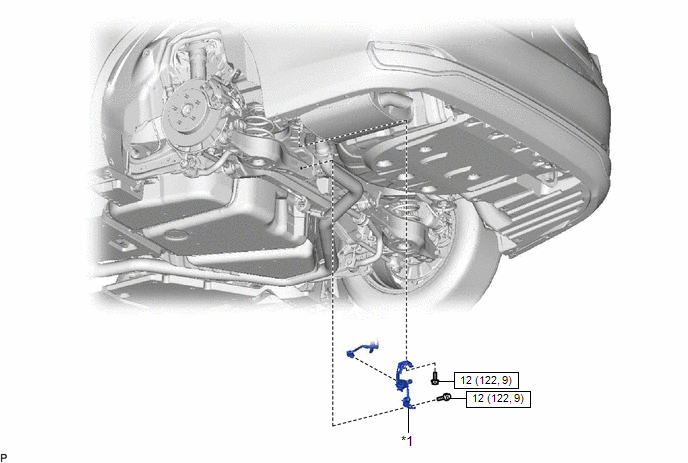

ILLUSTRATION

*1

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
