Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

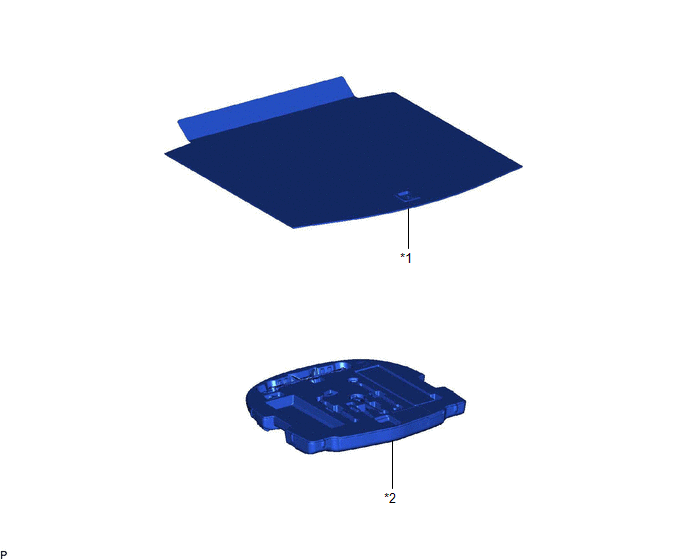

| *1 | LUGGAGE COMPARTMENT FLOOR MAT | *2 | SPARE WHEEL COVER TRAY |
ILLUSTRATION
.png)

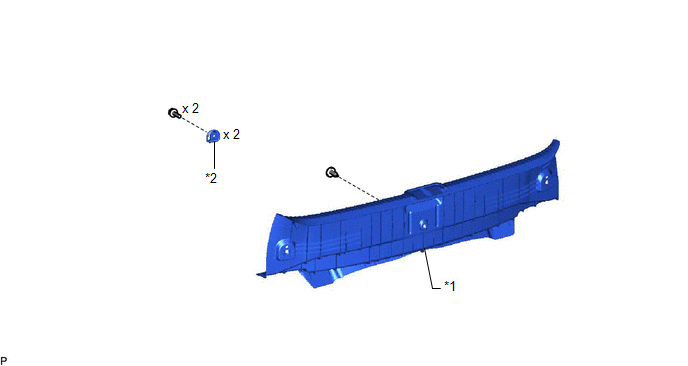

| *1 | REAR FLOOR FINISH PLATE | *2 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION
| *A | w/o Power Trunk Lid System | *B | w/ Power Trunk Lid System |
| *C | for Type A | *D | for Type B |

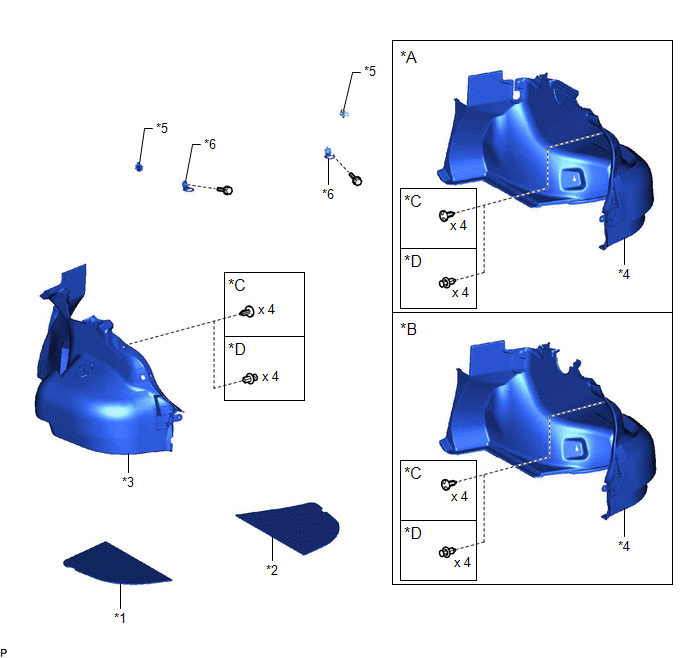

| *1 | LUGGAGE COMPARTMENT TRIM COVER LH | *2 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *3 | LUGGAGE COMPARTMENT TRIM INNER COVER LH | *4 | LUGGAGE COMPARTMENT TRIM INNER COVER RH |
| *5 | ROPE HOOK | *6 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION
| *A | w/ Power Trunk Lid System | - | - |

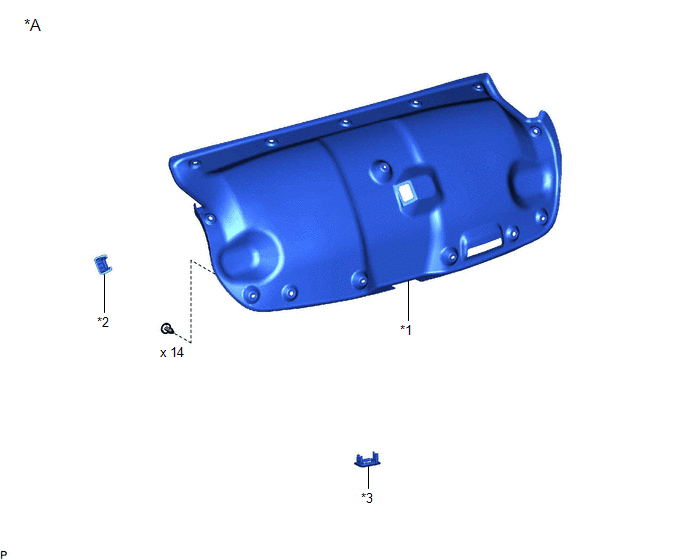

| *1 | LUGGAGE COMPARTMENT DOOR COVER | *2 | LUGGAGE LOCK CONTROL CABLE PLATE |
| *3 | SWITCH BEZEL | - | - |

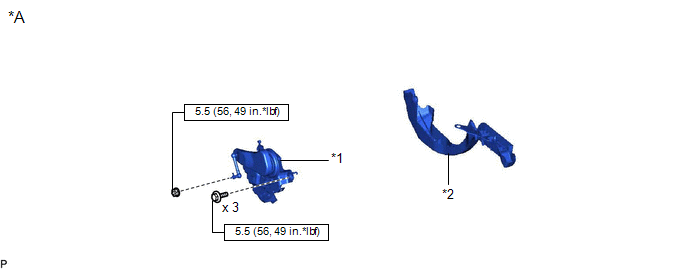

ILLUSTRATION
| *A | w/ Power Trunk Lid System | - | - |
| *1 | LUGGAGE CLOSER MOTOR ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR HINGE COVER RH |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT | *2 | LUGGAGE DOOR HINGE TORSION BAR LH |
| *3 | LUGGAGE DOOR HINGE TORSION BAR RH | - | - |
| ● | Non-reusable part | - | - |
