Lexus ES: Components
COMPONENTS

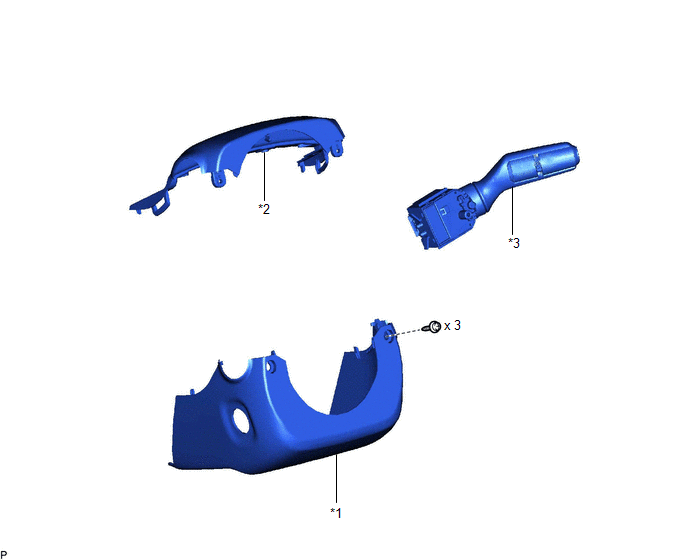

ILLUSTRATION
| *1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | *2 | UPPER STEERING COLUMN COVER |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | - | - |
READ NEXT:
Removal
REMOVAL PROCEDURE 1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column) Click here 2. REMOVE LOWER STEERING COLUMN COVER S
Inspection
INSPECTION PROCEDURE 1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY (w/ Auto Wiper System) (a) Measure the resistance according to the value(s) in the table below. *A for Type A *B for Type B
Installation
INSTALLATION PROCEDURE 1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (a) Engage the claw to install the windshield wiper switch assembly as shown in the illustration. Install in this Direction
