Lexus ES (XZ10) Service Manual / Steering / Steering Column / Heated Steering Wheel Controller / Components
COMPONENTS

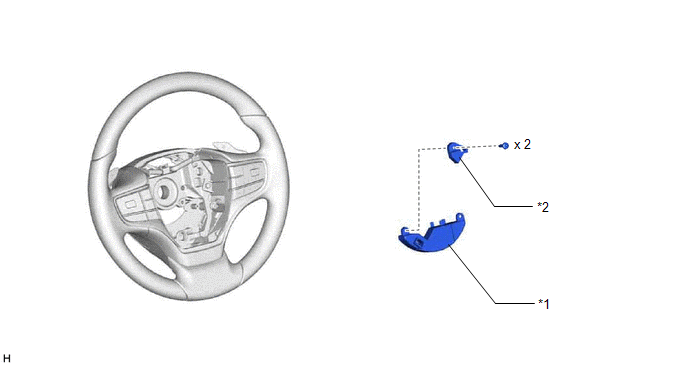

ILLUSTRATION
| *1 | HEATED STEERING WHEEL CONTROLLER (STEERING VIBRATION ECU) | *2 | STEERING WHEEL PAD BRACKET |
