Lexus ES (XZ10) Service Manual / Steering / Steering Column / Heated Steering Wheel Controller / Installation

INSTALLATION

PROCEDURE

1. INSTALL HEATED STEERING WHEEL CONTROLLER (STEERING VIBRATION ECU)

(a) Connect the connector to the heated steering wheel controller (steering vibration ECU).

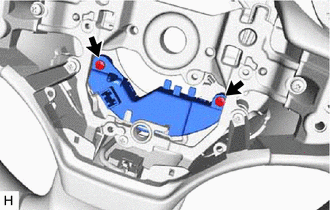

(b) Install the heated steering wheel controller (steering vibration ECU) and steering wheel pad bracket with the 2 screws.

NOTICE:

  • Work carefully so that the heater thermistor does not come off the lower steering wheel boss cover.
  • If the heater thermistor comes off the lower steering wheel boss cover, replace the steering wheel assembly.

(c) Connect the spiral cable connector to the heated steering wheel controller (steering vibration ECU).

2. INSTALL HORN BUTTON ASSEMBLY

Click here
