Lexus ES: Components

COMPONENTS

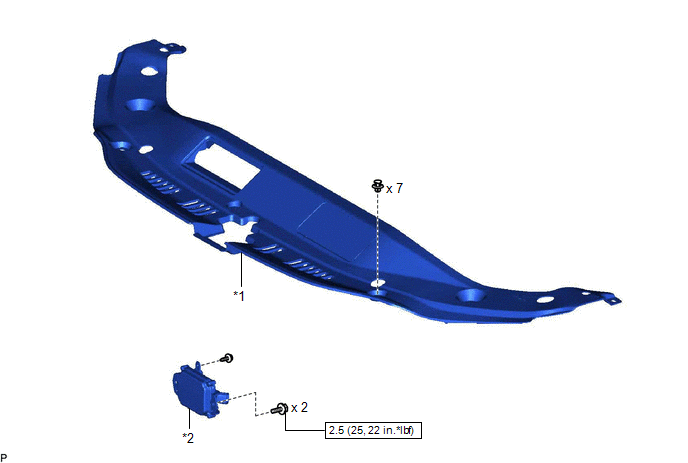

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
