Lexus ES: Components
COMPONENTS

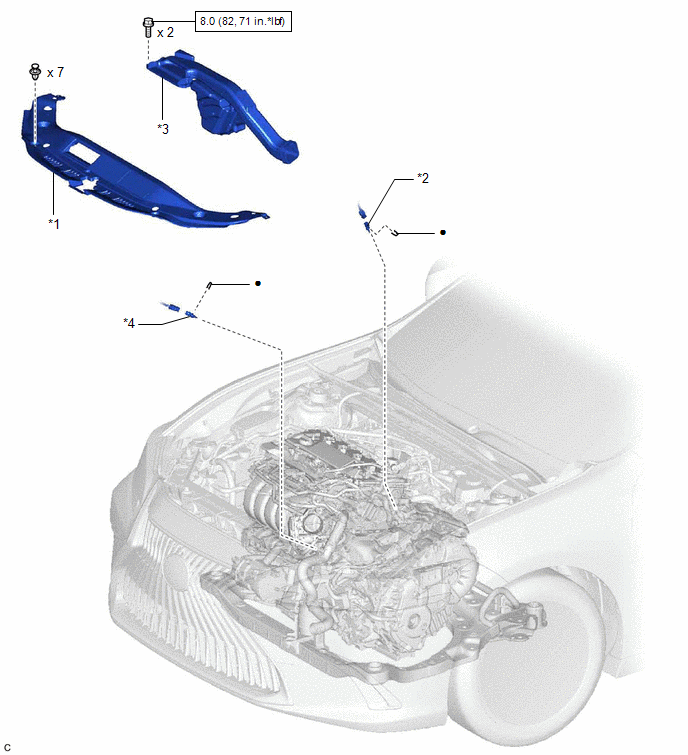

ILLUSTRATION
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | NO. 2 ENGINE COOLANT TEMPERATURE SENSOR |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
