Lexus ES: Components
COMPONENTS

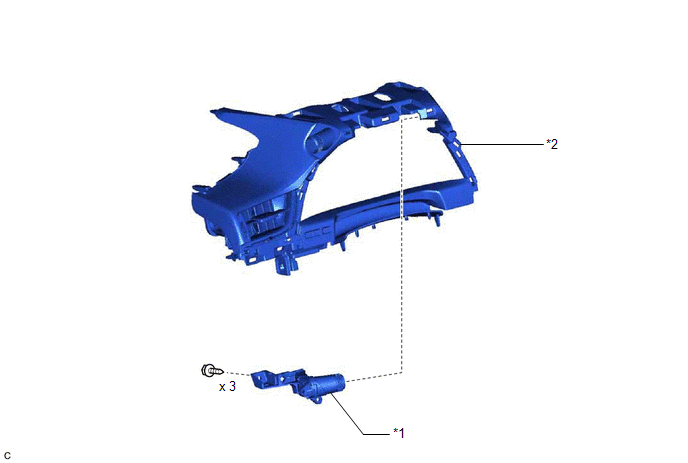

ILLUSTRATION
.png)
| *1 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
