Lexus ES: Removal

REMOVAL

PROCEDURE

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Click here

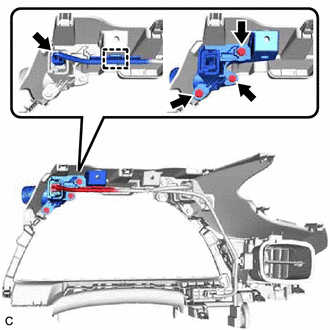

2. REMOVE DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)

(a) Disconnect the drive mode select switch (combination switch assembly) connector.

(b) Disengage the clamp to disconnect the wire harness from the instrument cluster finish panel assembly.

(c) Remove the 3 screws and drive mode select switch (combination switch assembly) from the instrument cluster finish panel assembly.
