Lexus ES (XZ10) Service Manual / General / Maintenance / Coolant(for Inverter) / Components

COMPONENTS

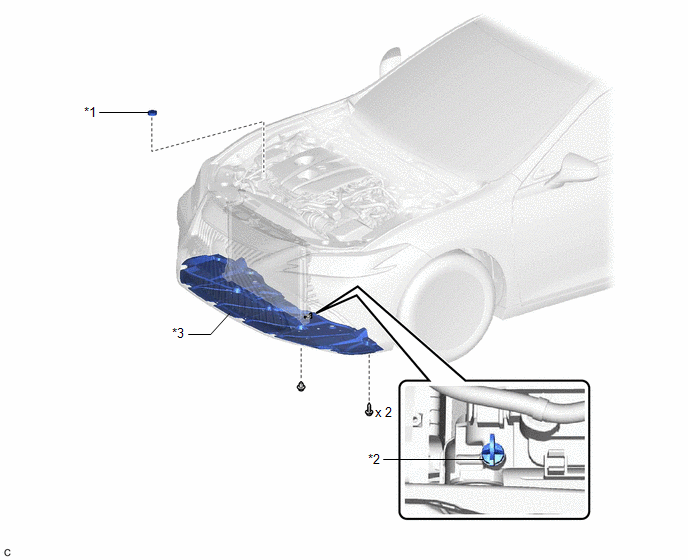

ILLUSTRATION

*1

RESERVE TANK CAP

*2

DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER

-

-
