Lexus ES (XZ10) Service Manual / Drivetrain / P710 (hybrid Transmission / Transaxle) / Input Shaft Oil Seal / Components

COMPONENTS

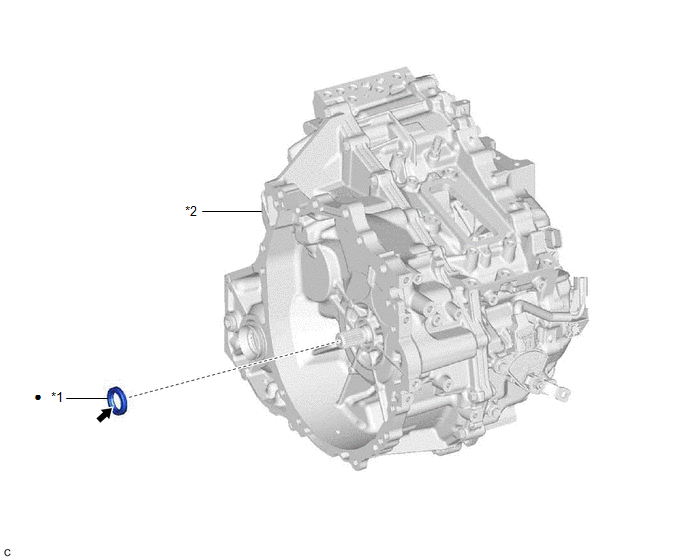

ILLUSTRATION

*1

INPUT SHAFT TYPE T OIL SEAL

*2

HYBRID VEHICLE TRANSAXLE ASSEMBLY

●

Non-reusable part

MP grease
