Lexus ES: Components
COMPONENTS

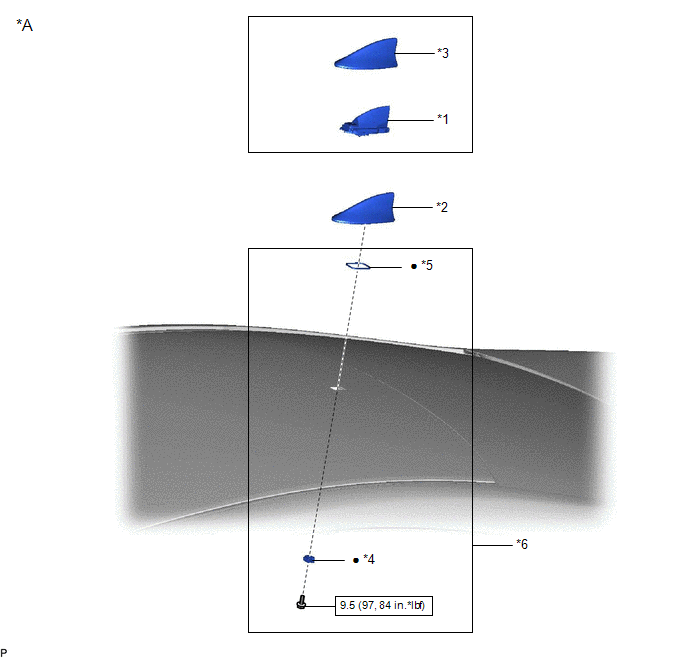

ILLUSTRATION
| *A | for Moon Roof | - | - |
| *1 | TELEPHONE AND GPS ANTENNA ASSEMBLY | *2 | TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER |
| *3 | COVER | *4 | WASHER AND HOLDER |
| *5 | SEAL | *6 | TELEPHONE ANTENNA HOUSING |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

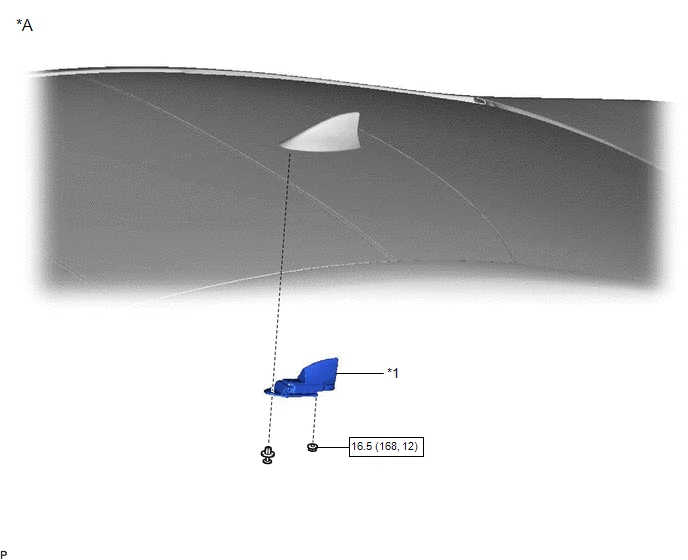

ILLUSTRATION
| *A | for Panoramic Moon Roof | - | - |
| *1 | TELEPHONE AND GPS ANTENNA ASSEMBLY | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
