COMPONENTS

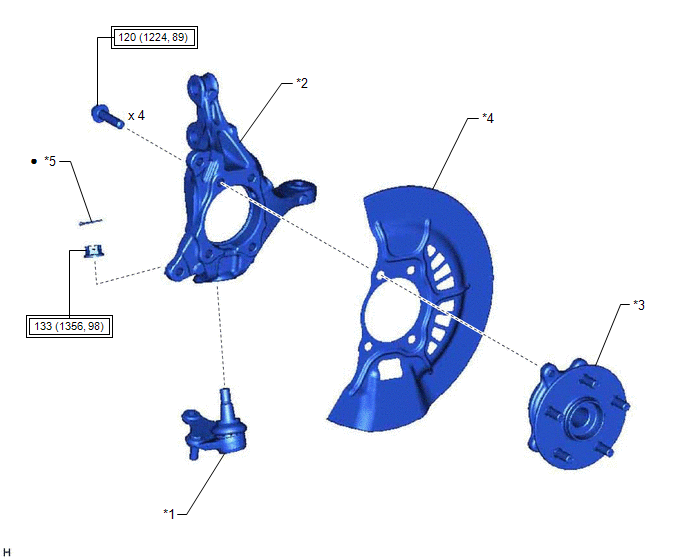

ILLUSTRATION

*1

FRONT LOWER BALL JOINT ASSEMBLY

*2

STEERING KNUCKLE

*3

FRONT AXLE HUB SUB-ASSEMBLY

*4

FRONT DISC BRAKE DUST COVER

*5

COTTER PIN

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
