Lexus ES: Absorber Control Actuator(for Rear Side)

Lexus ES (XZ10) Service Manual / Suspension / Suspension Control / Absorber Control Actuator(for Rear Side)

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT ABSORBER CONTROL ACTUATOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 3

15 to 25°C

3.3 to 3.7 Ω

If the result is not as specified, replace the rear shock absorber assembly.

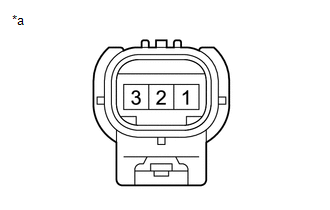

*a

Component without harness connected

(Absorber Control Actuator)
