Lexus ES: Using the storage features

Lexus ES (XZ10) Owner's Manual / Interior features / Using the storage features

List of storage features

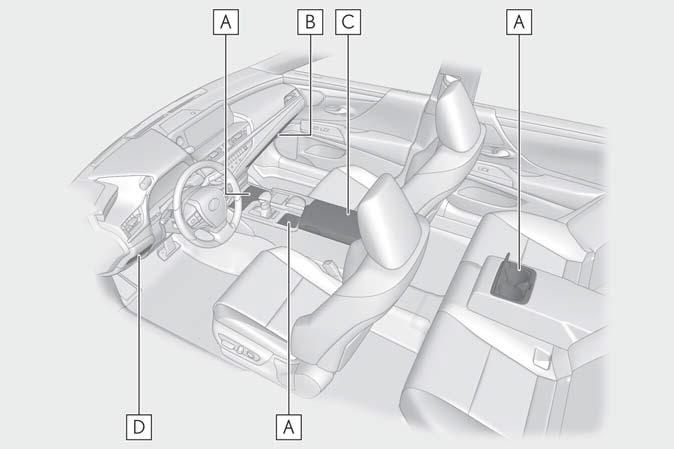

Location of the storage features

Lexus ES. Using the storage features

  1. Cup holder
  2. Glove box
  3. Console box
  4. Auxiliary box

WARNING

■Items that should not be left in the vehicle Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:

■When storage compartments are not in use When driving or when the storage compartments are not in use, keep the lids closed.

In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by an open lid or the items stored inside.

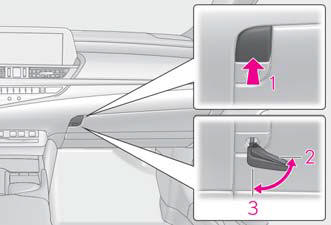

Glove box

Lexus ES. Using the storage features

  1. Open (press the glove box opener)
  2. Unlock with the mechanical key
  3. Lock with the mechanical key

■Glove box light The glove box light turns on when the tail lights are on.

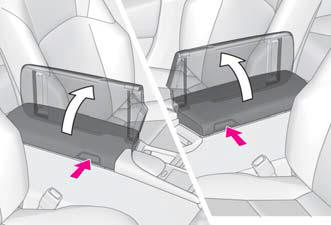

Console box

Press a button to open the console box.

The console box can be opened from either side.

Lexus ES. Using the storage features

■Console box light The console box light turns on when the tail lights are on.

WARNING

■Caution while driving Keep the console box closed.

Injuries may result in the event of an accident or sudden braking.

NOTICE

■To prevent damage to the console box When the console box is open, do not apply excessive force in the direction that it was opened.

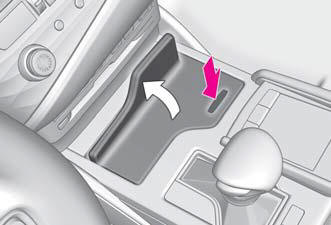

Cup holders

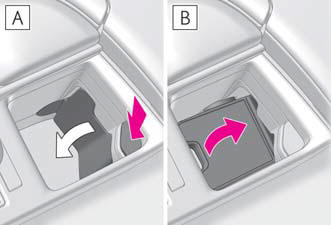

Front (type A)

To open, press down and release the cup holder lid.

Lexus ES. Using the storage features

Front (type B)

Adjust the depth of the cup holder.

Lexus ES. Using the storage features

  1. Shallow (press the button)
  2. Deepen

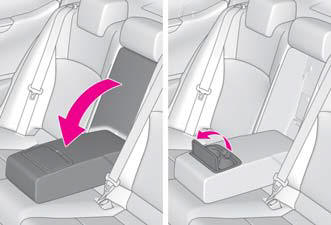

Rear

To open, pull down the armrest and open the lid.

Lexus ES. Using the storage features

■Front cup holder (type A)

1. Remove the partition

Lexus ES. Using the storage features

2. Remove the plate

Lexus ES. Using the storage features

WARNING

■Items unsuitable for the cup holder Do not place anything other than a cup, beverage can or bottle (front [type B]) in the cup holder. Even when the lid is closed, items must not be stored in the cup holder.

Other items may be thrown out of the holder in the event of an accident or sudden braking, causing injury. If possible, cover hot drinks to prevent burns.

NOTICE

■To prevent damage to the cup holder

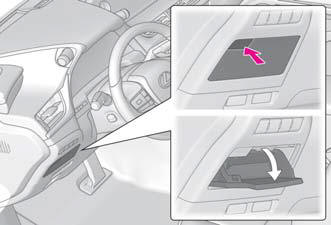

Auxiliary box

Press in the button.

Lexus ES. Using the storage features

Trunk features

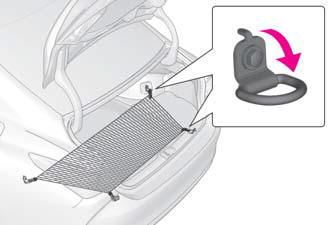

Cargo hooks

Raise the hooks when needed.

The cargo hooks are provided for securing loose items.

Lexus ES. Using the storage features

WARNING

■When the cargo net hooks are not in use To avoid injury, always return the cargo net hooks to their stowed positions when not in use.

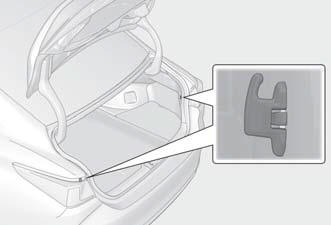

Grocery bag hooks

Lexus ES. Using the storage features

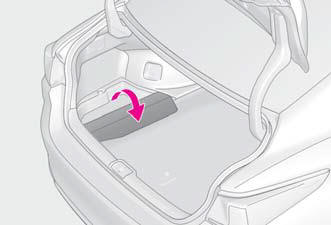

Luggage mat

Lift the luggage mat up.

Lexus ES. Using the storage features
