Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
NOTICE:
- DTCs may be output when connectors are disconnected during inspection. Therefore, be sure to clear the DTCs using the Techstream once the inspection has been completed.
- Do not apply excessive force to the forward recognition camera connector.

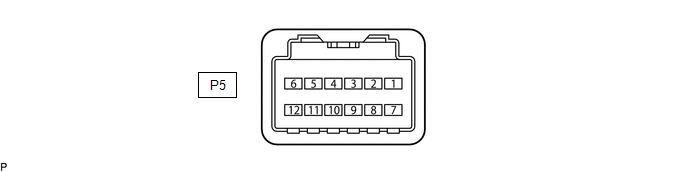

.png)
CHECK FORWARD RECOGNITION CAMERA
(a) Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P5-7 (IGB) - P5-10 (GND) | LA-P - LA | Power source | Power switch on (IG) | 11 to 14 V |
| Power switch off | Below 1 V | |||
| P5-3 (LKSW) - P5-10 (GND) | BE - LA | Steering pad switch signal (LTA/LDA main switch signal) | Power switch off LTA/LDA main switch off | 1 MΩ or higher |
| Power switch off LTA/LDA main switch on | 228 to 252 Ω | |||
| P5-10 (GND) - Body ground | LA - Body ground | Ground | Always | Below 1 Ω |
(b) Check for pulses according to the value(s) in the table below.
HINT:
If the waveform is not similar to that shown in the illustration, a malfunction of a CAN bus line, terminating resistor, or the forward recognition camera is suspected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P5-5 (CA1P) - P5-10 (GND) | L - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 1) |
| P5-11 (CA1N) - P5-10 (GND) | W - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 2) |
| P5-6 (CANH) - P5-10 (GND) | B - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 1) |
| P5-12 (CANL) - P5-10 (GND) | W - LA | CAN communication signal | Power switch on (IG) | Pulse generation (See waveform 2) |
(1) WAVEFORM 1
| Item | Content |
|---|---|
| Terminal Name | Between P5-5 (CA1P) and P5-10 (GND) Between P5-6 (CANH) and P5-10 (GND) |
| Tester Range | 1 V/DIV., 10 μs/DIV. |
| Condition | Power switch on (IG) |
HINT:
The waveform varies depending on the CAN communication signal.

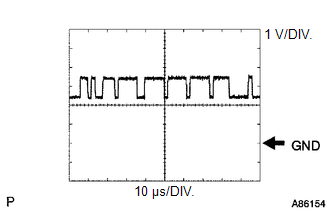

.png)
(2) WAVEFORM 2
| Item | Content |
|---|---|
| Terminal Name | Between P5-11 (CA1N) and P5-10 (GND) Between P5-12 (CANL) and P5-10 (GND) |
| Tester Range | 1 V/DIV., 10 μs/DIV. |
| Condition | Power switch on (IG) |
HINT:
The waveform varies depending on the CAN communication signal.

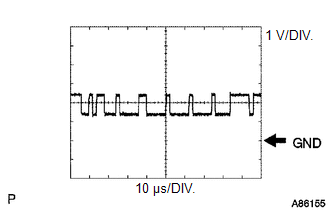

.png)
