TERMINALS OF ECU
HINT:
Check from the rear of the connector while it is connected to the components.

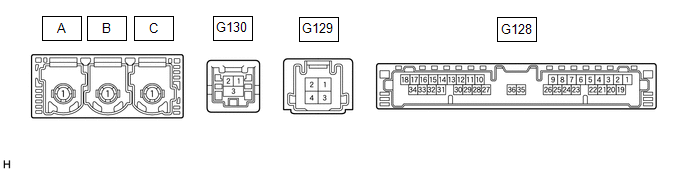

DCM (TELEMATICS TRANSCEIVER)
.png)
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G128-1 (+B) - G128-20 (E) | GR - W-B | Power source (+B) | Power switch off | 11 to 14 V |
| G128-20 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| G128-19 (IG2) - G128-20 (E) | P - W-B | Power source (IG) | Power switch on (IG) | 11 to 14 V |
| Power switch off | Below 1 V | |||
| G128-25 (CANP) | R | CAN communication signal | - | - |
| G128-26 (CANN) | W | CAN communication signal | - | - |
| G128-30 (SLPD) - G128-20 (E) | SB - W-B | Steering lock bar position signal | Steering locked | 11 to 14 V |
| Steering unlocked | Below 1.5 V |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Click here .gif)
