Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Suspension / Suspension Control / Adaptive Variable Suspension System / System Diagram

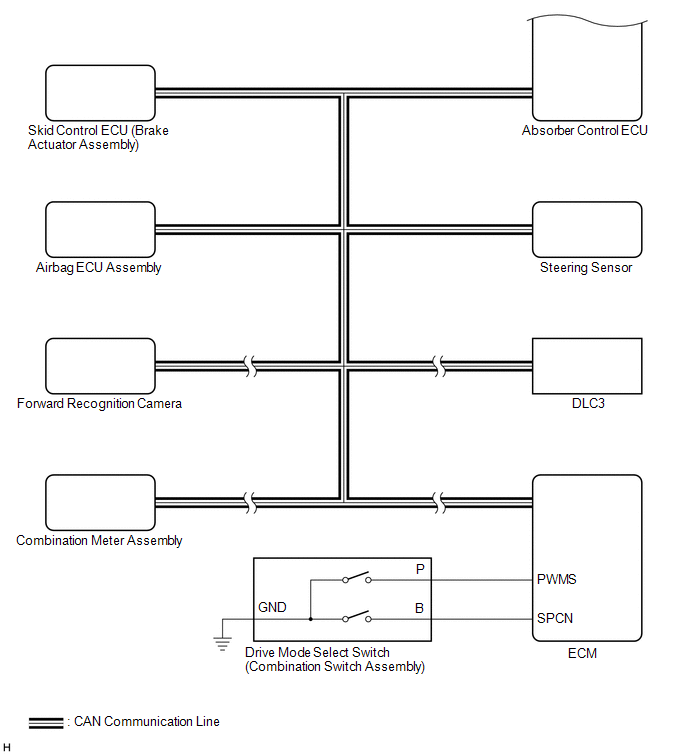

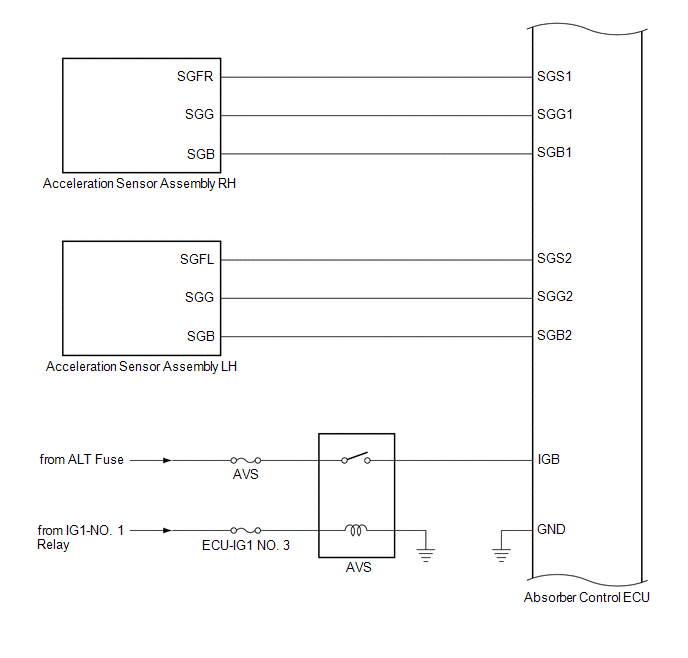

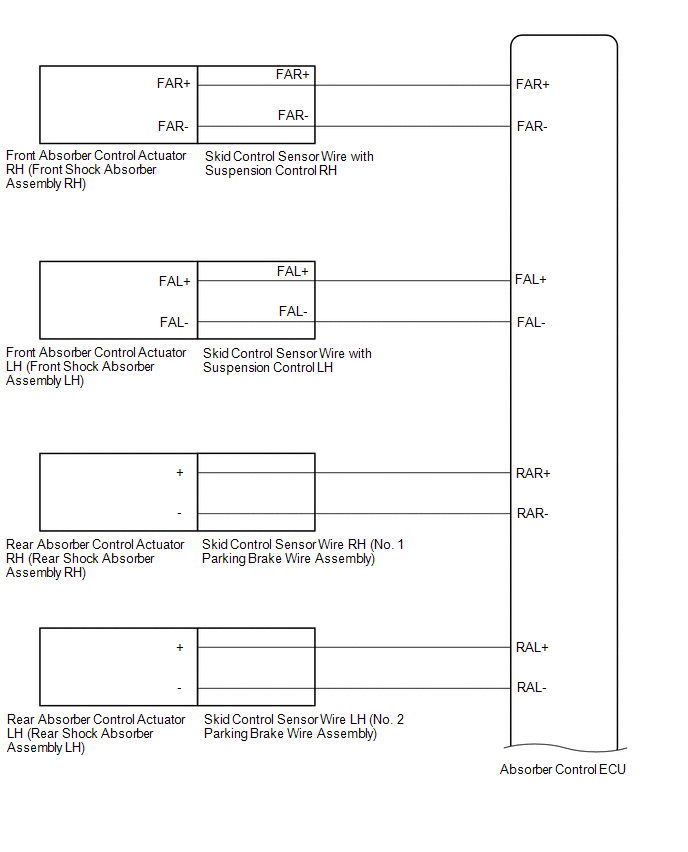

SYSTEM DIAGRAM
