Lexus ES: Components
COMPONENTS

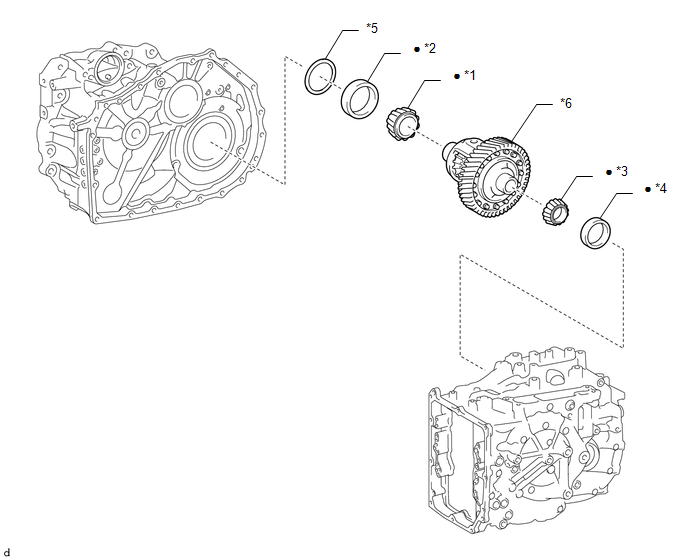

ILLUSTRATION
| *1 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) | *2 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
| *3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) | *4 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
| *5 | DIFFERENTIAL DRIVE PINION SHIM | *6 | DIFFERENTIAL CASE ASSEMBLY |
| ● | Non-reusable part | - | - |
