Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL REAR TELEVISION CAMERA ASSEMBLY

2. INSTALL TELEVISION CAMERA WIRE

(a) Connect the connector to install the television camera wire.

3. INSTALL TELEVISION CAMERA ASSEMBLY WITH WIRE

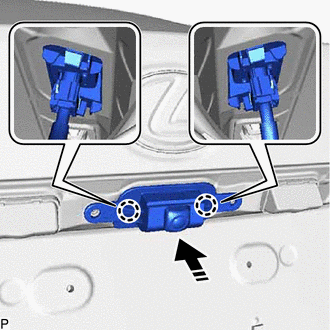

(a) Engage the 2 claws to install the television camera assembly with wire as shown in the illustration.

Install in this Direction

(b) Engage the clamp.

(c) Connect the connector.

4. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

5. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

for HV Model: Click here

for Gasoline Model: Click here

6. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

for HV Model: Click here

for Gasoline Model: Click here
