Lexus ES: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL LOWER POSITION INDICATOR HOUSING

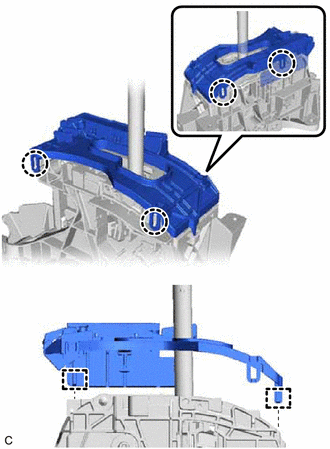

(a) Engage the 4 claws and 2 guides to install the lower position indicator housing to the shift lock control unit assembly.

NOTICE:

Do not damage the lower position indicator housing.

2. INSTALL SHIFT POSITION INDICATOR

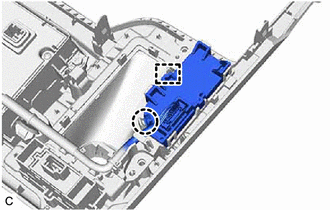

(a) Engage the claw and guide to install the shift position indicator to the rear upper console panel sub-assembly.

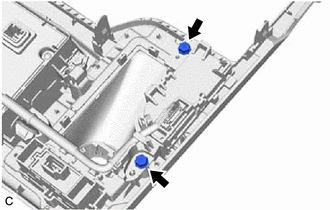

(b) Install the 2 screws.

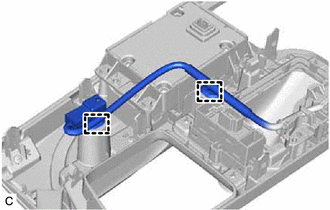

(c) Engage the 2 clamps to connect the wire harness.
