Lexus ES: Shift Paddle Switch

Components

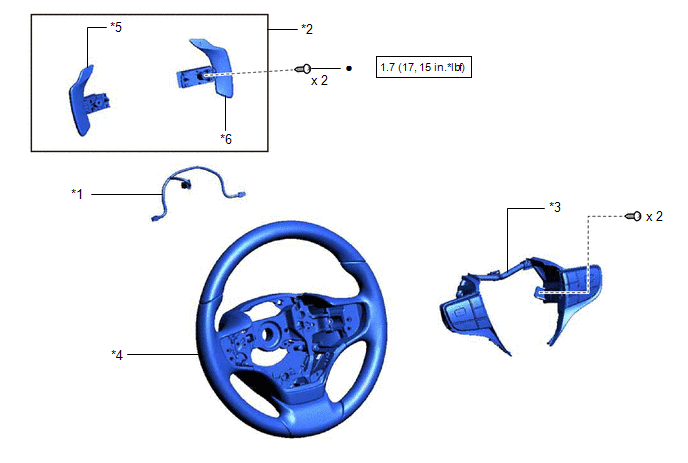

COMPONENTS

ILLUSTRATION

*1

NO. 1 SWITCH WIRE

*2

SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

*3

STEERING PAD SWITCH ASSEMBLY

*4

STEERING WHEEL ASSEMBLY

*5

SHIFT PADDLE SWITCH LH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

*6

SHIFT PADDLE SWITCH RH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Precoated part

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

(a) Shift Paddle Switch LH (Transmission Shift Switch Assembly):

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (SDN) - 2 (ECC)

"-" (Down shift) shift paddle switch operated and held

Below 2.5 Ω

"-" (Down shift) shift paddle switch not operated

1 MΩ or higher

1 (SDN) - 3 (ECC1)

"-" (Down shift) shift paddle switch operated and held

Below 2.5 Ω

"-" (Down shift) shift paddle switch not operated

1 MΩ or higher

If the result is not as specified, replace the shift paddle switch LH (transmission shift switch assembly).

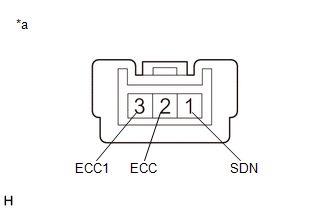

*a

Component without harness connected

(Shift Paddle Switch LH (Transmission Shift Switch Assembly))

(b) Shift Paddle Switch RH (Transmission Shift Switch Assembly):

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (SUP) - 2 (ECC)

"+" (Up shift) shift paddle switch operated and held

Below 2.5 Ω

"+" (Up shift) shift paddle switch not operated

1 MΩ or higher

If the result is not as specified, replace the shift paddle switch RH (transmission shift switch assembly).

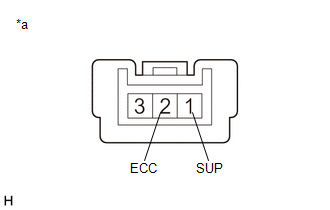

*a

Component without harness connected

(Shift Paddle Switch RH (Transmission Shift Switch Assembly))

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 SWITCH WIRE

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

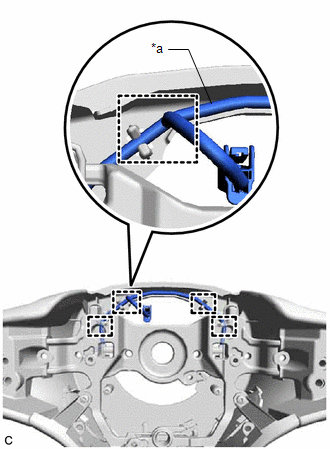

(a) Engage the 4 guides to install the No. 1 switch wire to the steering wheel assembly.

NOTICE:

Make sure that the junction of the No. 1 switch wire is the right of the guide as shown in the illustration.

*a

No. 1 Switch Wire

2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

(a) Connect the 2 shift paddle switch (transmission shift switch assembly) connectors to install the 2 shift paddle switches (transmission shift switch assemblies) to the No. 1 switch wire.

(b) Engage the 2 clamps.

(c) Engage the 4 claws to install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly.

(d) Install 2 new screws.

Torque:

1.7 N·m {17 kgf·cm, 15 in·lbf}

3. INSTALL STEERING PAD SWITCH ASSEMBLY

Click here

4. INSTALL STEERING WHEEL ASSEMBLY

Click here
