Lexus ES: Reassembly
REASSEMBLY
PROCEDURE
1. INSTALL LOWER POSITION INDICATOR HOUSING

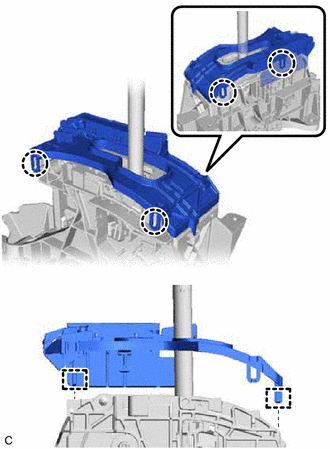

| (a) Engage the 4 claws and 2 guides to install the lower position indicator housing to the shift lock control unit assembly. NOTICE: Do not damage the lower position indicator housing. |
|
.png)
2. INSTALL SHIFT POSITION INDICATOR

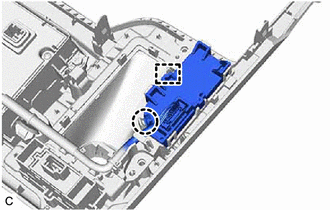

| (a) Engage the claw and guide to install the shift position indicator to the rear upper console panel sub-assembly. |
|
.png)

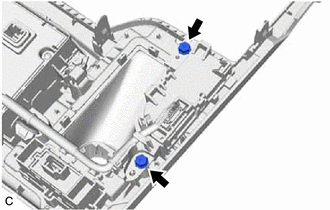

| (b) Install the 2 screws. |
|
.png)

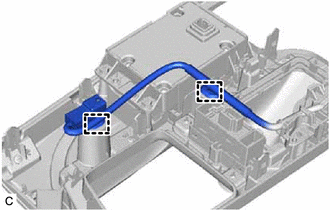

| (c) Engage the 2 clamps to connect the wire harness. |
|
.png)
