Lexus ES: Components
COMPONENTS
ILLUSTRATION

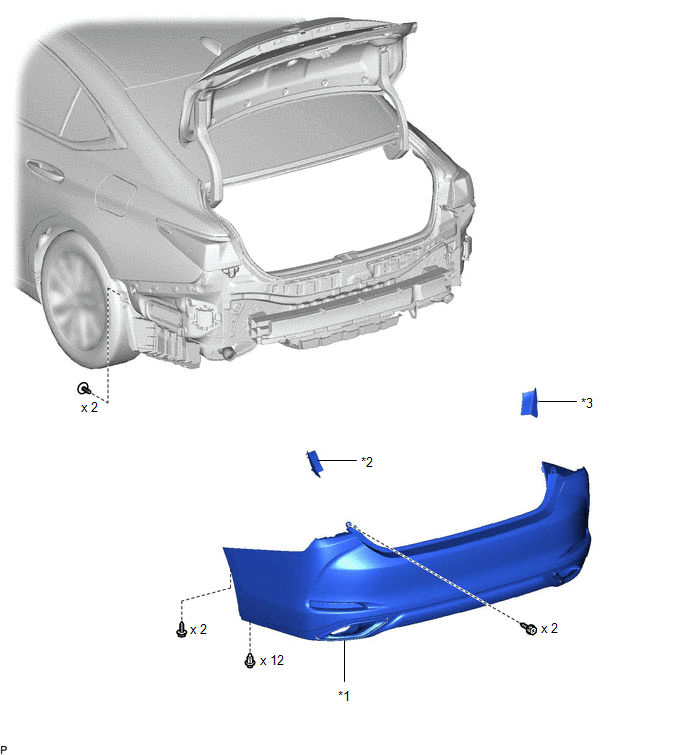

| *1 | REAR BUMPER ASSEMBLY | *2 | REAR COMBINATION LIGHT COVER LH |
| *3 | REAR COMBINATION LIGHT COVER RH | - | - |
ILLUSTRATION

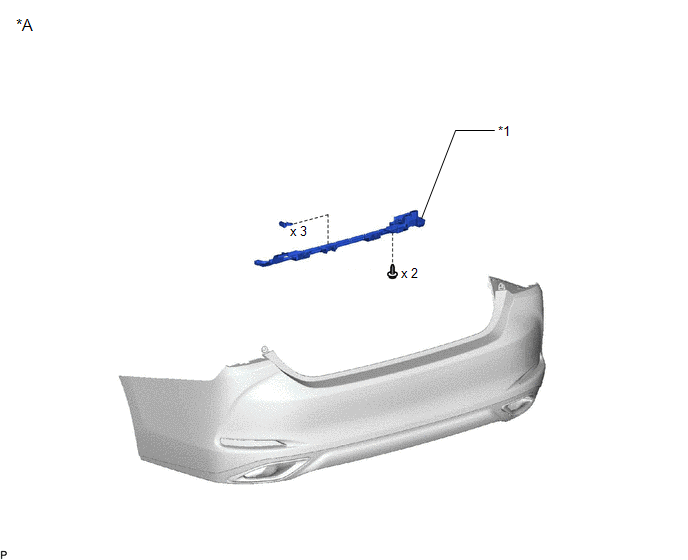

| *A | w/ Hands Free Power Trunk Lid | - | - |
| *1 | KICK DOOR CONTROL SENSOR WITH BRACKET | - | - |
ILLUSTRATION

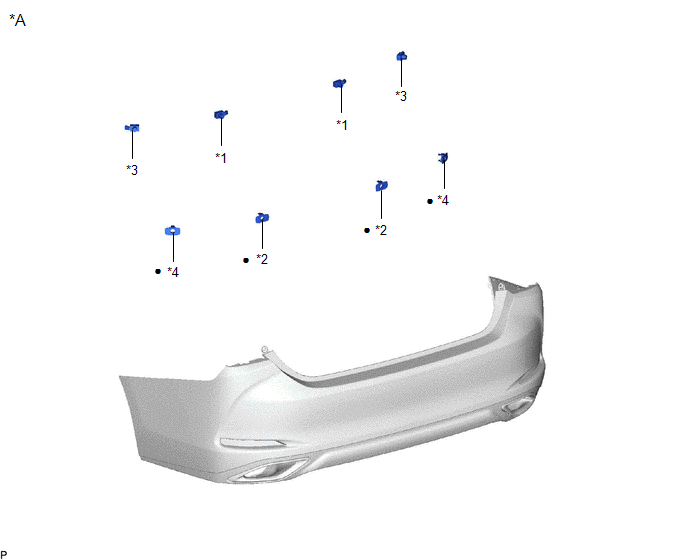

| *A | w/ Parking Support Alert System | - | - |
| *1 | REAR CENTER ULTRASONIC SENSOR | *2 | REAR CENTER ULTRASONIC SENSOR RETAINER |
| *3 | REAR CORNER ULTRASONIC SENSOR | *4 | REAR CORNER ULTRASONIC SENSOR RETAINER |
| ● | Non-reusable part | - | - |
ILLUSTRATION

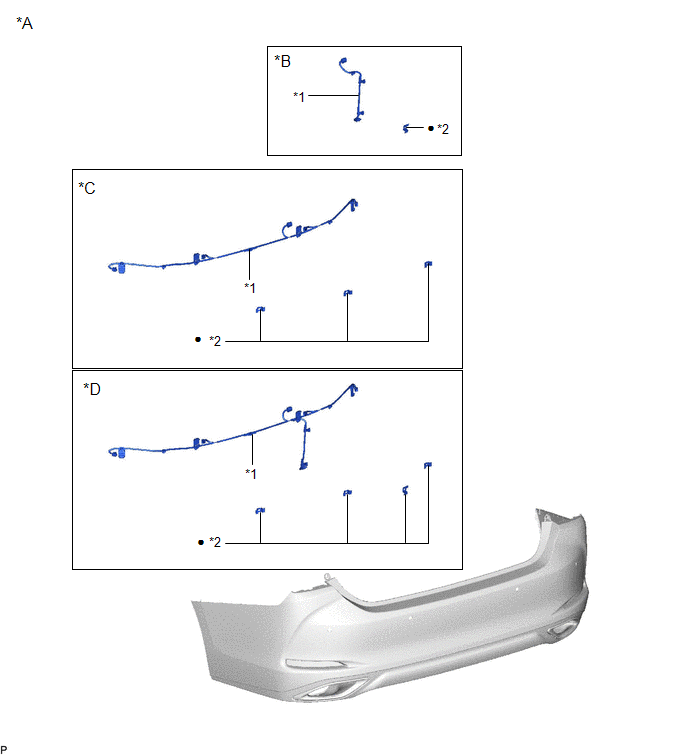

| *A | w/ Wire Harness | *B | w/ Hands Free Power Trunk Lid without Parking Support Alert System |
| *C | w/ Parking Support Alert System without Hands Free Power Trunk Lid | *D | w/ Hands Free Power Trunk Lid and Parking Support Alert System |
| *1 | NO. 2 LUGGAGE ROOM WIRE | *2 | ULTRASONIC SENSOR CLIP |
| ● | Non-reusable part | - | - |
ILLUSTRATION

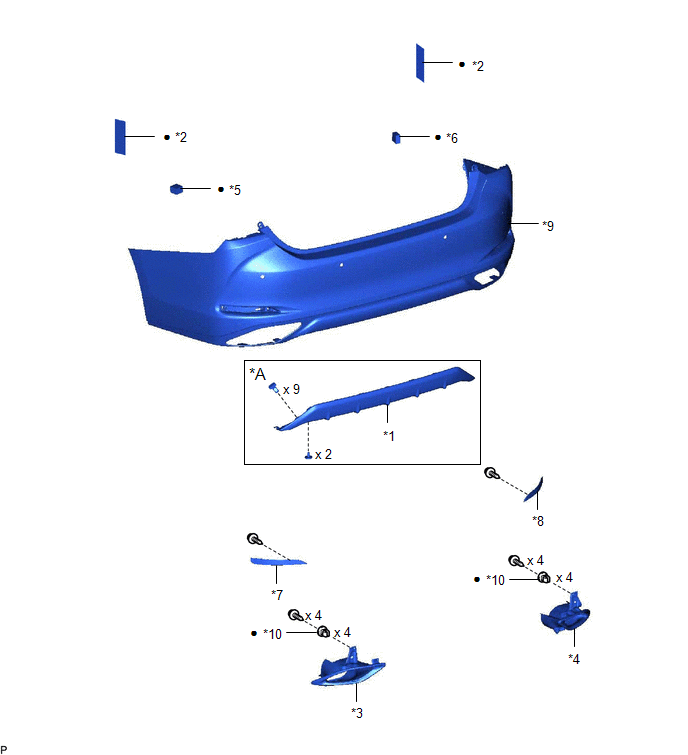

| *A | for Mesh Type Radiator Grille | - | - |
| *1 | CENTER REAR BUMPER EXTENSION SUB-ASSEMBLY | *2 | NO. 1 MOULDING TAPE |
| *3 | REAR BUMPER EXTENSION SUB-ASSEMBLY LH | *4 | REAR BUMPER EXTENSION SUB-ASSEMBLY RH |
| *5 | REAR BUMPER PAD LH | *6 | REAR BUMPER PAD RH |
| *7 | REFLEX REFLECTOR ASSEMBLY LH | *8 | REFLEX REFLECTOR ASSEMBLY RH |
| *9 | REAR BUMPER COVER | *10 | GROMMET |
| ● | Non-reusable part | - | - |
ILLUSTRATION

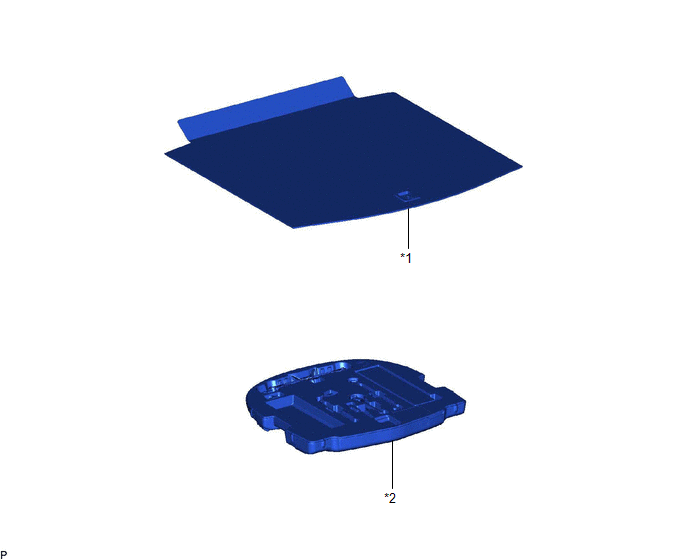

| *1 | LUGGAGE COMPARTMENT FLOOR MAT | *2 | SPARE WHEEL COVER TRAY |
ILLUSTRATION

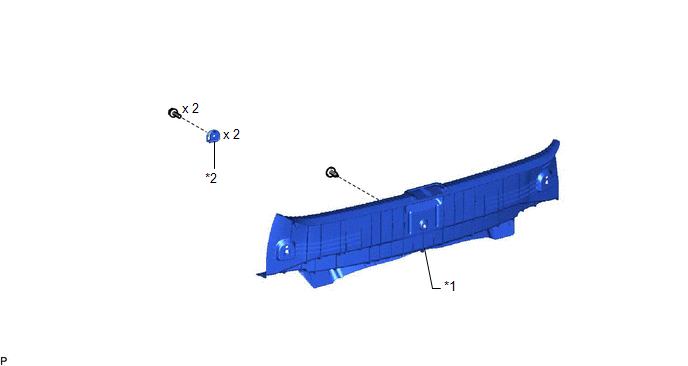

| *1 | REAR FLOOR FINISH PLATE | *2 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION

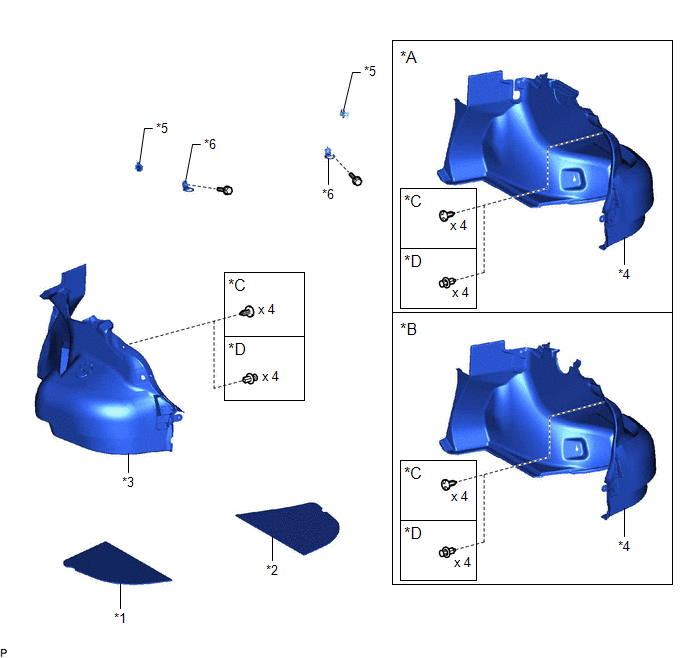

| *A | w/o Power Trunk Lid System | *B | w/ Power Trunk Lid System |
| *C | for Type A | *D | for Type B |
| *1 | LUGGAGE COMPARTMENT TRIM COVER LH | *2 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *3 | LUGGAGE COMPARTMENT TRIM INNER COVER LH | *4 | LUGGAGE COMPARTMENT TRIM INNER COVER RH |
| *5 | ROPE HOOK | *6 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
ILLUSTRATION

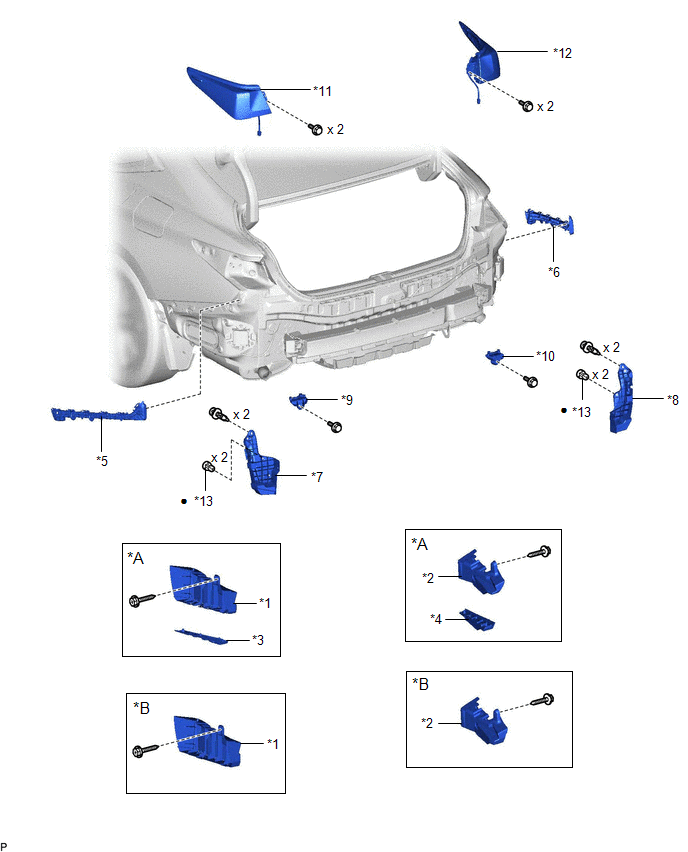

| *A | for TMC Made | *B | for TMMK Made |
| *1 | LOWER REAR BUMPER SIDE RETAINER LH | *2 | LOWER REAR BUMPER SIDE RETAINER RH |
| *3 | NO. 2 REAR BUMPER SIDE RETAINER LH | *4 | NO. 2 REAR BUMPER SIDE RETAINER RH |
| *5 | NO. 2 REAR BUMPER SIDE SUPPORT LH | *6 | NO. 2 REAR BUMPER SIDE SUPPORT RH |
| *7 | REAR BUMPER SIDE SUPPORT LH | *8 | REAR BUMPER SIDE SUPPORT RH |
| *9 | REAR BUMPER UPPER RETAINER LH | *10 | REAR BUMPER UPPER RETAINER RH |
| *11 | REAR COMBINATION LIGHT LENS AND BODY LH | *12 | REAR COMBINATION LIGHT LENS AND BODY RH |
| *13 | GROMMET | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION

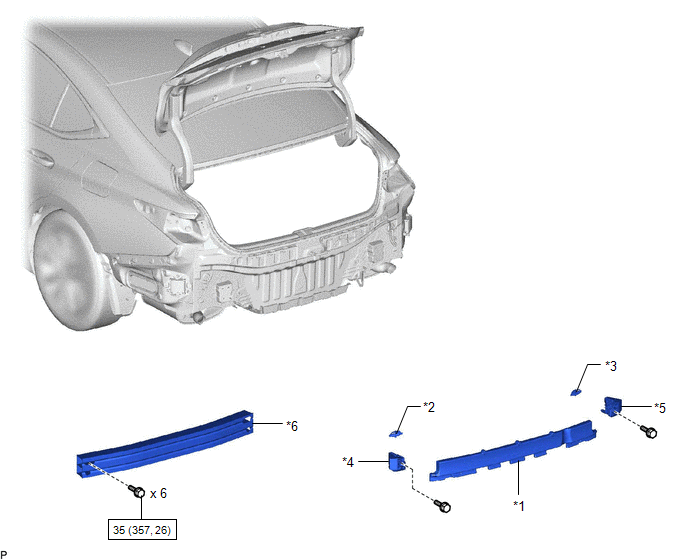

| *1 | REAR BUMPER ENERGY ABSORBER | *2 | REAR BUMPER PROTECTOR INSERT LH |
| *3 | REAR BUMPER PROTECTOR INSERT RH | *4 | REAR BUMPER PROTECTOR LH |
| *5 | REAR BUMPER PROTECTOR RH | *6 | REAR BUMPER REINFORCEMENT |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
